3240792

Active

Phoenix Contact

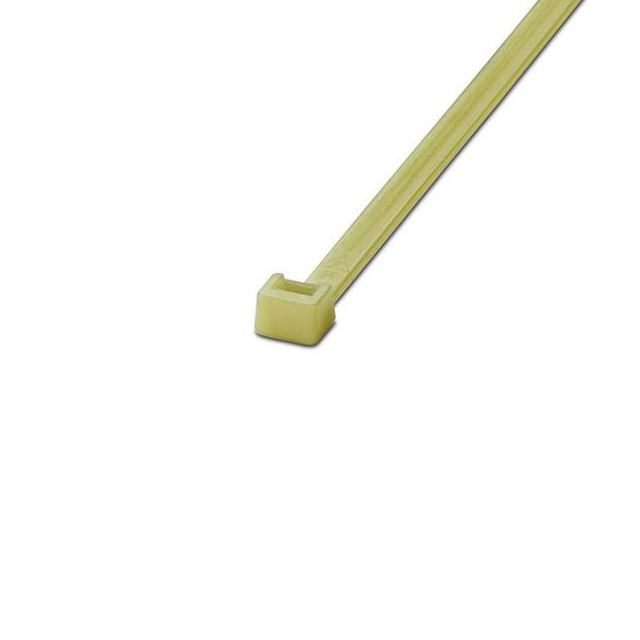

CBL TIE LOCK TRAN 121.4LB 1.198'

Search across all available documentation for this part.

Active

Phoenix Contact

CBL TIE LOCK TRAN 121.4LB 1.198'

Technical Specifications

Parameters and characteristics for this part

Part	Wire/Cable Tie Type	Width [y]	Width [y]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Material	Length - Approximate	Color	Mounting Type	Tensile Strength	Tensile Strength	Features	Length - Actual	Length - Actual	Width [x]	Width [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Width	Width	Bundle Diameter	Bundle Diameter	Length - Actual
Phoenix Contact 3240788	Locking Standard	4.8 mm	0.189 in	11.42 "	0.951 ft	290 mm	Polyamide (PA66) Nylon 6/6	11.5 in	Transparent	Free Hanging (In-Line)
Phoenix Contact 3240781	Locking Standard				0.322 '		Polyamide (PA66) Nylon 6/6	3.75 in	Black	Free Hanging (In-Line)	18 lbs	8.16 kg	Halogen Free	3.86 "	98 mm	0.098 in	2.5 mm	21 mm	0.83 in
Phoenix Contact 3240792	Locking Standard				1.198 ft	365 mm	Polyamide (PA66) Nylon 6/6	14.25 in	Transparent	Free Hanging (In-Line)	121.4 lbs	55.07 kg	Halogen Free					100 mm	3.94 in	7.8 mm	0.307 "
Phoenix Contact 3240782	Locking Standard						Polyamide (PA66) Nylon 6/6	5.5 in	Transparent	Free Hanging (In-Line)	29.2 lbs	13.25 kg	Halogen Free			0.142 in	3.61 mm					1.38 in	35 mm
Phoenix Contact 3240785	Locking Standard						Polyamide (PA66) Nylon 6/6	7.75 in	Black	Free Hanging (In-Line)	29.2 lbs	13.25 kg	Halogen Free	7.87 "	200 mm	0.142 in	3.61 mm					1.97 in	50 mm	0.656 ft
Phoenix Contact 3240786	Locking Standard	4.8 mm	0.189 in				Polyamide (PA66) Nylon 6/6	7.75 in	Transparent	Free Hanging (In-Line)				7.87 "	200 mm									0.656 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.19

General part information

Standard, Locking Transparent 3.94" (100.00mm) 0.307" (7.80mm) 121.4 lbs (55.07 kg)
