346-050-521-607
ActiveEDAC Inc.

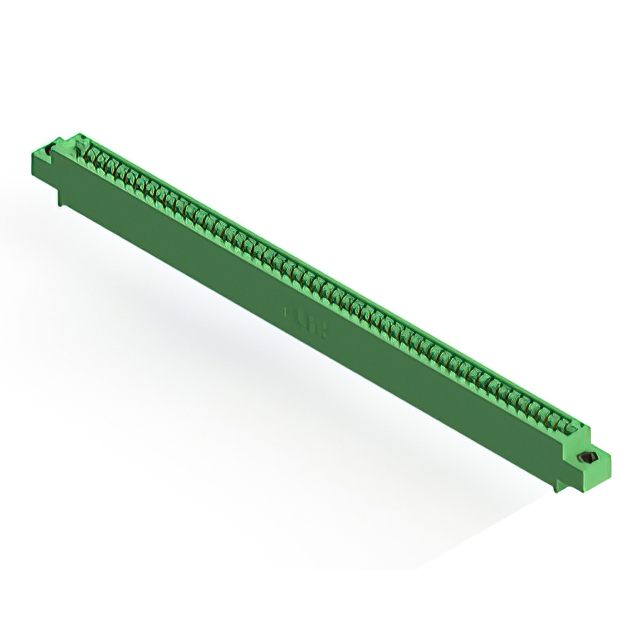

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 50 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-050-521-607
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 50 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-050-521-607 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 50 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
346-050 Series
...
| Part | Contact Finish | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Pitch [x] | Pitch [x] | Termination Rows | Mounting Type | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Number of Positions/Bay/Row [custom] | Card Type | Gender | Termination | Color | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 2 | 0.125 in | 3.18 mm | 2 | Board Edge Straddle Mount | Copper Alloy | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Cantilever | Card Extender | -40 °C | 105 ░C | 50 | 25 | Non Specified - Dual Edge | Female | Solder Eyelet(s) | Green | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
EDAC Inc. | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 2 | 0.125 in | 3.18 mm | 2 | Through Hole | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Cantilever | -40 °C | 105 ░C | 50 | 25 | Non Specified - Dual Edge | Female | Solder | Green | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1 | 0.125 in | 3.18 mm | 1 | Through Hole Right Angle | Copper Alloy | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Cantilever | -40 °C | 105 ░C | 50 | 50 | Non Specified - Single Edge | Female | Solder Wire Wrap | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |
EDAC Inc. | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 2 | 0.125 in | 3.18 mm | 2 | Through Hole | Copper Alloy | M3 Threaded Insert Top Mount Opening | Cantilever | -40 °C | 105 ░C | 50 | 25 | Non Specified - Dual Edge | Female | Solder | Green | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 2 | 0.125 in | 3.18 mm | 2 | Board Edge Straddle Mount | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Card Extender | -40 °C | 105 ░C | 50 | 25 | Non Specified - Dual Edge | Female | Solder | Green | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1 | 0.125 in | 3.18 mm | 1 | Through Hole | Copper Alloy | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Cantilever | -40 °C | 105 ░C | 50 | 50 | Non Specified - Single Edge | Female | Solder | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |
EDAC Inc. | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1 | 0.125 in | 3.18 mm | 1 | Through Hole | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Cantilever | -40 °C | 105 ░C | 50 | 50 | Non Specified - Single Edge | Female | Wire Wrap | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 2 | 0.125 in | 3.18 mm | 2 | Through Hole | Copper Alloy | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Cantilever | -40 °C | 105 ░C | 50 | 25 | Non Specified - Dual Edge | Female | Solder | Green | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |
EDAC Inc. | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 1 | 0.125 in | 3.18 mm | 1 | Through Hole | Copper Alloy | M3 Threaded Insert Top Mount Opening | Cantilever | -40 °C | 105 ░C | 50 | 50 | Non Specified - Single Edge | Female | Solder | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 2 | 0.125 in | 3.18 mm | 2 | Through Hole | Copper Alloy | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Cantilever | -40 °C | 105 ░C | 50 | 25 | Non Specified - Dual Edge | Female | Solder | Green | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-050 Series
50 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
