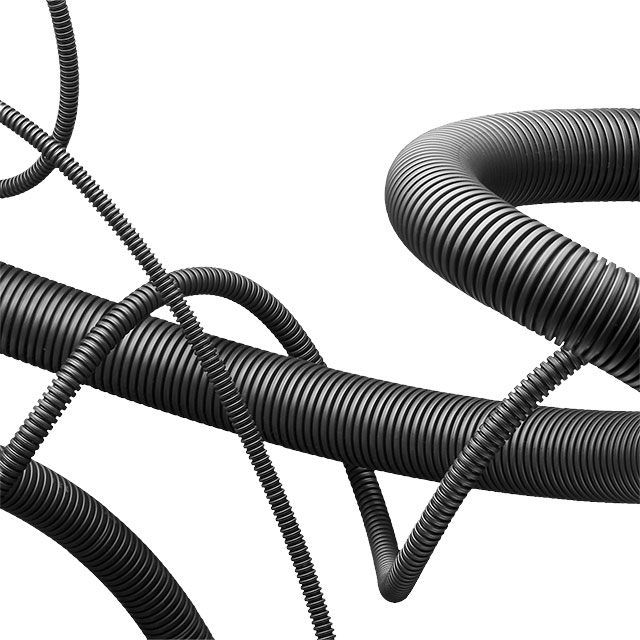

FPAFF-12B.50

Active

Fraenkische USA, LP

FIPLOCK, PA6 MOD V0, NW12, FINE,

Search across all available documentation for this part.

Active

Fraenkische USA, LP

FIPLOCK, PA6 MOD V0, NW12, FINE,

Technical Specifications

Parameters and characteristics for this part

Specification	FPAFF-12B.50

Color	Black
Diameter - Inside [diameter]	12 mm
Diameter - Inside [diameter]	0.472 in
Diameter - Outside [diameter]	0.618 in
Diameter - Outside [diameter]	15.7 mm
Environment Protection	Weather Resistant
Features	Chemical Resistant
Heat Protection	Flame Retardant
Length [x]	50 m
Length [x]	164 ft
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-45 °C
Type	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated

Part	Heat Protection	Type Attributes	Color	Length [x]	Length [x]	Material Flammability Rating	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Environment Protection	Type	Features
Fraenkische USA, LP FPAFF-12G.50	Flame Retardant	Convoluted Corrugated	Gray	50 m	164 ft	UL94 V-0	12 mm	0.472 in	0.618 in	15.7 mm	120 °C	-45 °C	Weather Resistant	Protective Hose Wire Loom
Fraenkische USA, LP FPAFF-12B.50	Flame Retardant	Convoluted Corrugated	Black	50 m	164 ft	UL94 V-0	12 mm	0.472 in	0.618 in	15.7 mm	120 °C	-45 °C	Weather Resistant	Protective Hose Wire Loom	Chemical Resistant
Fraenkische USA, LP FPAFF-10B.50	Flame Retardant	Convoluted Corrugated	Black	50 m	164 ft	UL94 V-0	9.6 mm	0.378 in	0.504 in	12.8 mm	120 °C	-45 °C	Weather Resistant	Protective Hose Wire Loom	Chemical Resistant
Fraenkische USA, LP FPAFF-07B.50	Flame Retardant	Convoluted Corrugated	Black	50 m	164 ft	UL94 V-0	6.2 mm	0.244 in	0.394 in	10 mm	120 °C	-45 °C	Weather Resistant	Protective Hose Wire Loom	Chemical Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Polyamide (PA6), Nylon 6 Convoluted, Corrugated Wire Loom, Protective Hose 0.472" (12.00mm) 164' (50.00m)
