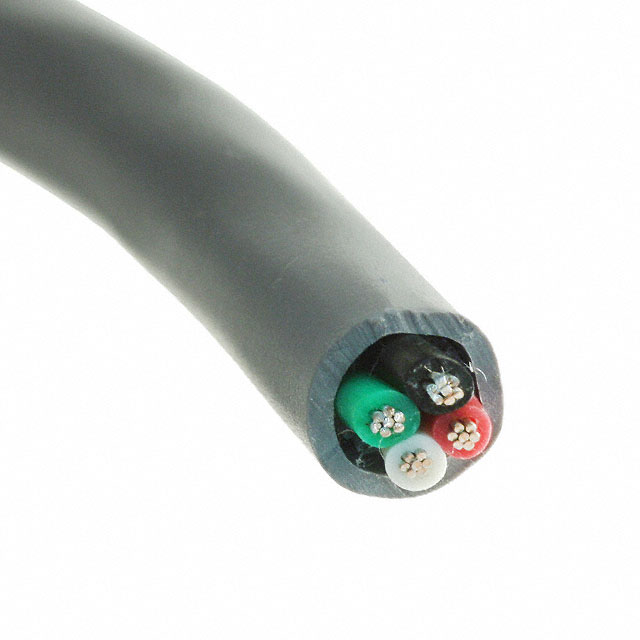

1064 SL001

Active

ALPHA WIRE

CABLE 4COND 16AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 16AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1064 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Jacket (Insulation) Diameter [diameter]	10.03 mm
Jacket (Insulation) Diameter [diameter]	0.395 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	600 V
Wire Gauge	16 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Insulation	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Length [x]	Length [x]	Usage	Number of Conductors	Jacket Color	Voltage	Length	Length
ALPHA WIRE 1064 SL002	19	0.0117 in	16 AWG	-20 C	80 C	10.03 mm	0.395 "	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	1.194 mm	0.047 in	Copper Tinned	500 '	152.4 m	Communication Control	4	Slate	600 V
ALPHA WIRE 1064 SL001	19	0.0117 in	16 AWG	-20 C	80 C	10.03 mm	0.395 "	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	1.194 mm	0.047 in	Copper Tinned			Communication Control	4	Slate	600 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Slate 16 AWG 1000.0' (304.8m)
