TJT150220RJ

Active

TE Connectivity Passive Product

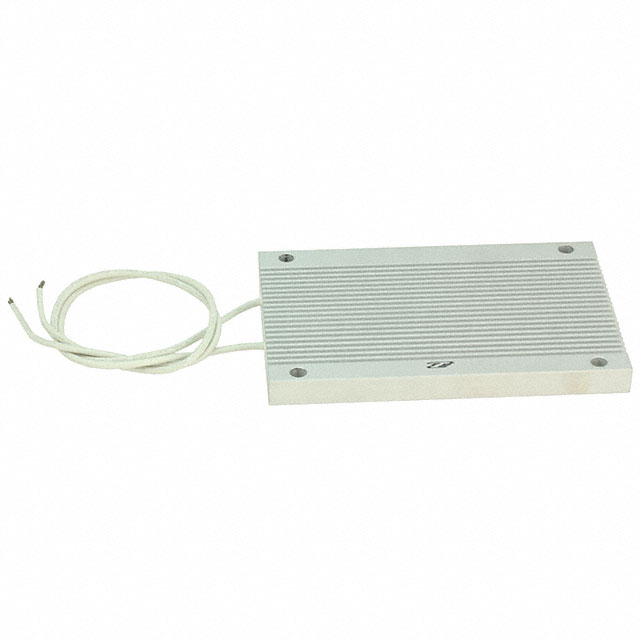

RES CHAS MNT 220 OHM 5% 150W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TJT150220RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 220 OHM 5% 150W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TJT150220RJ

Coating, Housing Type	Aluminum
Composition	Wirewound
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Lead Style	Wire Leads
Mounting Feature	Screw Holes
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-25 °C
Package / Case	Rectangular Case
Power (Watts)	150 W
Resistance	220 Ohms
Size / Dimension [x]	4.724 "
Size / Dimension [x]	120 mm
Size / Dimension [y]	80 mm
Size / Dimension [y]	3.15 in
Temperature Coefficient	260 ppm/°C
Tolerance	5 %

TJT150 Series

Part	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Coating, Housing Type	Operating Temperature [Min]	Operating Temperature [Max]	Lead Style	Tolerance	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Power (Watts)	Temperature Coefficient	Mounting Feature
TE Connectivity Passive Product TJT150220RJ	Rectangular Case	4.724 "	80 mm	120 mm	3.15 in	Aluminum	-25 °C	250 °C	Wire Leads	5 %	Wirewound	0.394 in	10 mm	220 Ohms	150 W	260 ppm/°C	Screw Holes
TE Connectivity Passive Product TJT150680RJ	Rectangular Case	4.724 "	80 mm	120 mm	3.15 in	Aluminum	-25 °C	250 °C	Wire Leads	5 %	Wirewound	0.394 in	10 mm	680 Ohms	150 W	260 ppm/°C	Screw Holes
TE Connectivity Passive Product TJT1502R2J	Rectangular Case	4.724 "	80 mm	120 mm	3.15 in	Aluminum	-25 °C	250 °C	Wire Leads	5 %	Wirewound	0.394 in	10 mm	2.2 Ohms	150 W	260 ppm/°C	Screw Holes
TE Connectivity Passive Product TJT150470RJ	Rectangular Case	4.724 "	80 mm	120 mm	3.15 in	Aluminum	-25 °C	250 °C	Wire Leads	5 %	Wirewound	0.394 in	10 mm	470 Ohms	150 W	260 ppm/°C	Screw Holes
TE Connectivity Passive Product TJT150100RJ	Rectangular Case	4.724 "	80 mm	120 mm	3.15 in	Aluminum	-25 °C	250 °C	Wire Leads	5 %	Wirewound	0.394 in	10 mm	100 Ohms	150 W	260 ppm/°C	Screw Holes
TE Connectivity Passive Product TJT1501R0J	Rectangular Case	4.724 "	80 mm	120 mm	3.15 in	Aluminum	-25 °C	250 °C	Wire Leads	5 %	Wirewound	0.394 in	10 mm	1 Ohms	150 W	260 ppm/°C	Screw Holes
TE Connectivity Passive Product TJT1506R8J	Rectangular Case	4.724 "	80 mm	120 mm	3.15 in	Aluminum	-25 °C	250 °C	Wire Leads	5 %	Wirewound	0.394 in	10 mm	6.8 Ohms	150 W	260 ppm/°C	Screw Holes
TE Connectivity Passive Product TJT15033RJ	Rectangular Case	4.724 "	80 mm	120 mm	3.15 in	Aluminum	-25 °C	250 °C	Wire Leads	5 %	Wirewound	0.394 in	10 mm	33 Ohms	150 W	260 ppm/°C	Screw Holes
TE Connectivity Passive Product TJT15022RJ	Rectangular Case	4.724 "	80 mm	120 mm	3.15 in	Aluminum	-25 °C	250 °C	Wire Leads	5 %	Wirewound	0.394 in	10 mm	22 Ohms	150 W	260 ppm/°C	Screw Holes

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.53
		10	$ 40.76
		30	$ 39.52
		50	$ 37.44
		100	$ 34.32
		250	$ 39.23

Description

General part information

TJT150 Series

220 Ohms ±5% 150W Wirewound Chassis Mount Resistor
