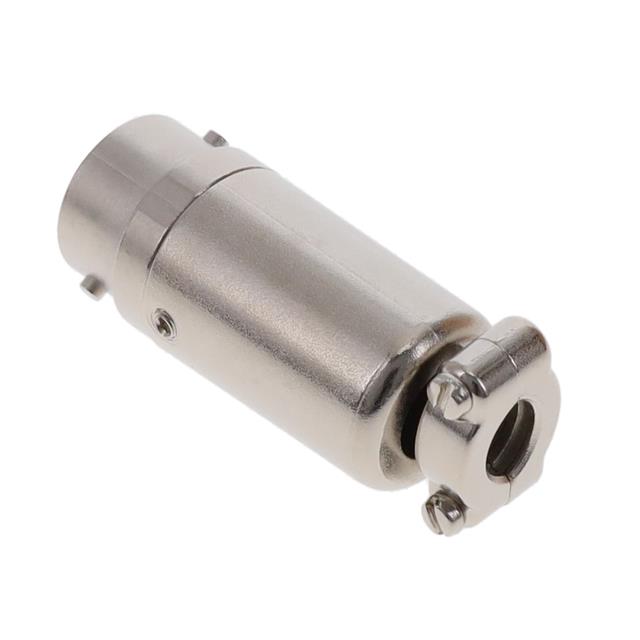

RM12BJB-6S(81)

Active

Hirose Electric USA, Inc.

CONN JACK FMALE 6POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM12BJB-6S(81)

Active

Hirose Electric USA, Inc.

CONN JACK FMALE 6POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM12BJB-6S(81)

Cable Opening [diameter]	8 mm
Cable Opening [diameter]	0.315 in
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	12
Shielding	Unshielded
Voltage Rating	350 VAC, 490 VDC

RM12BJB Series

Part	Backshell Material, Plating	Color	Shell Finish	Shell Size - Insert	Voltage Rating	Current Rating (Amps)	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Finish - Mating	Material Flammability Rating	Primary Material	Connector Type	Mounting Type	Shell Material	Contact Material	Orientation	Shielding	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Cable Opening [diameter]	Cable Opening [diameter]
Hirose Electric USA, Inc. RM12BJB-5S(81)	Nickel Zinc Alloy	Silver	Nickel	12	350 VAC 490 VDC	5 A	Bayonet Lock	5 mm	0.197 in	8 mm	0.315 in	Backshell Cable Clamp	-25 °C	85 °C	Diallyl Phthalate (DAP)	Silver	UL94 V-0	Metal	Female Sockets Jack	Free Hanging (In-Line)	Zinc Alloy	Copper Alloy	Keyed	Unshielded
Hirose Electric USA, Inc. RM12BJB-4PH(81)	Nickel Zinc Alloy	Silver	Nickel	12	500 VAC 700 VDC	5 A	Bayonet Lock	5 mm	0.197 in	8 mm	0.315 in	Backshell Cable Clamp	-25 °C	85 °C	Diallyl Phthalate (DAP)	Silver	UL94 V-0	Metal	Jack Male Pins	Free Hanging (In-Line)	Zinc Alloy	Copper Alloy	Keyed	Unshielded	4
Hirose Electric USA, Inc. RM12BJB-5PH	Nickel Zinc Alloy	Silver	Nickel	12	350 VAC 490 VDC	5 A	Bayonet Lock	5 mm	0.197 in	8 mm	0.315 in	Backshell Cable Clamp	-25 °C	85 °C	Diallyl Phthalate (DAP)	Silver	UL94 V-0	Metal	Jack Male Pins	Free Hanging (In-Line)	Zinc Alloy	Copper Alloy	Keyed			78.7 µin	2 µm
Hirose Electric USA, Inc. RM12BJB-2PH(81)	Nickel Zinc Alloy	Silver	Nickel	12	600 VAC 840 VDC	5 A	Bayonet Lock	5 mm	0.197 in	8 mm	0.315 in	Backshell Cable Clamp	-25 °C	85 °C	Diallyl Phthalate (DAP)	Silver	UL94 V-0	Metal	Jack Male Pins	Free Hanging (In-Line)	Zinc Alloy	Copper Alloy	Keyed	Unshielded	2
Hirose Electric USA, Inc. RM12BJB-6S(81)		Silver	Nickel	12	350 VAC 490 VDC	5 A	Bayonet Lock					Backshell Cable Clamp	-25 °C	85 °C	Polyphenylene Sulfide (PPS)	Silver	UL94 V-0	Metal	Female Sockets Jack	Free Hanging (In-Line)	Zinc Alloy	Copper Alloy	Keyed	Unshielded	6			8 mm	0.315 in
Hirose Electric USA, Inc. RM12BJB-7PH	Nickel Zinc Alloy	Silver	Nickel	12	350 VAC 490 VDC	5 A	Bayonet Lock	5 mm	0.197 in	8 mm	0.315 in	Backshell Cable Clamp	-25 °C	85 °C	Diallyl Phthalate (DAP)	Silver	UL94 V-0	Metal	Jack Male Pins	Free Hanging (In-Line)	Zinc Alloy	Copper Alloy	Keyed		7	78.7 µin	2 µm
Hirose Electric USA, Inc. RM12BJB-7S(07)	Nickel Zinc Alloy	Silver	Nickel	12	350 VAC 490 VDC	5 A	Bayonet Lock	5 mm	0.197 in	8 mm	0.315 in	Backshell Cable Clamp	-25 °C	85 °C	Diallyl Phthalate (DAP)	Silver	UL94 V-0	Metal	Female Sockets Jack	Free Hanging (In-Line)	Zinc Alloy	Copper Alloy	Keyed		7
