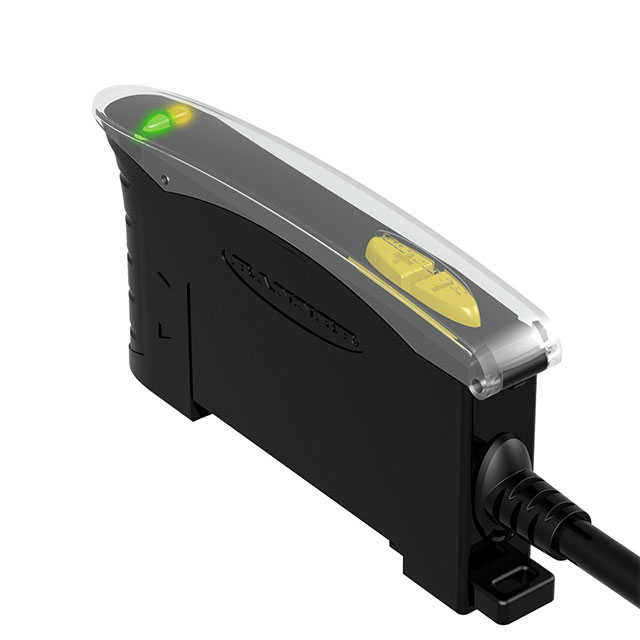

D10DPFP

Active

BANNER ENGINEERING

FIBER OPTIC SENSOR, EXPERT&TRADE;, DUAL DISCRETE OUTPUTS, RED BEAM, D10 SERIES, PNP, PRE-WIRED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

FIBER OPTIC SENSOR, EXPERT&TRADE;, DUAL DISCRETE OUTPUTS, RED BEAM, D10 SERIES, PNP, PRE-WIRED

Technical Specifications

Parameters and characteristics for this part

Specification	D10DPFP

Adjustment Type	Adjustable
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 1 IEC IP50
Light Source	Red LED, Green LED
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	PNP
Response Time	500 µs
Sensing Method	Fiber Optic
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Adjustment Type	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Connection Method	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Response Time	Cable Length	Cable Length	Light Source	Sensing Method
BANNER ENGINEERING D10DPFPQ	Adjustable	NEMA 1 IEC IP50	12 V	24 V	PNP	Connector	55 °C	-10 °C	50 µs	78.74 in	2 m	LED
BANNER ENGINEERING D10DPFP	Adjustable	NEMA 1 IEC IP50	12 V	24 V	PNP	Cable	55 °C	-10 °C	500 µs	78.74 in	2 m	Green LED Red LED	Fiber Optic
BANNER ENGINEERING D10DPCFP	Adjustable	NEMA 1 IEC IP50	12 V	24 V	PNP	Cable	55 °C	-10 °C	150 µs	78.74 in	2 m	Red	Fiber Optic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 302.00
Newark	Each	1	$ 308.45

General part information

Fiber Optic Optical Sensor PNP
