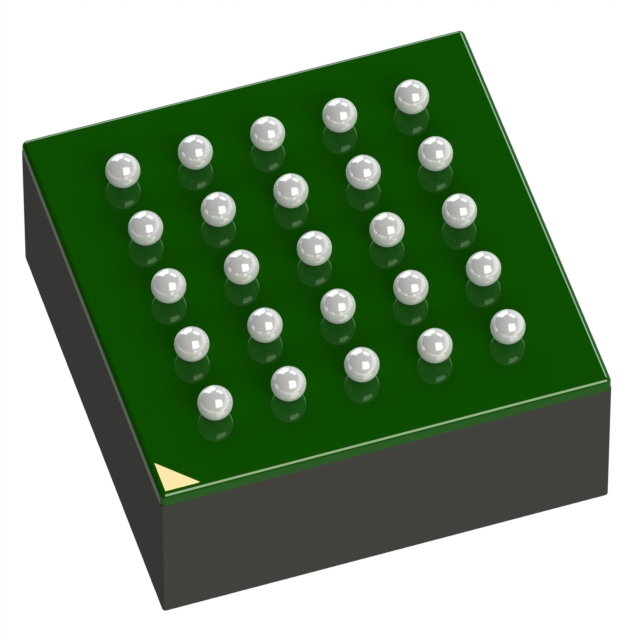

LTM8074IY
ActiveDC-DC CONV, 0.8 TO 12V, 1.2A, BGA-25 ROHS COMPLIANT: NO
Deep-Dive with AI
Search across all available documentation for this part.
LTM8074IY
ActiveDC-DC CONV, 0.8 TO 12V, 1.2A, BGA-25 ROHS COMPLIANT: NO
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM8074IY |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.2 A |
| Features | Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 25-FBGA |
| Size / Dimension [x] | 0.16 in |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 4 mm |
| Size / Dimension [y] | 0.16 in |
| Size / Dimension [z] | 0.07 " |
| Size / Dimension [z] | 1.82 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Min) [Min] | 3.2 V |
| Voltage - Output 1 [Max] | 12 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LTM8074 Series
The LTM8074 is a 40VIN, 1.2A continuous, 1.75A peak, step-down µModule®(power module) regulator. The Silent Switcher architecture minimizes EMI while delivering high efficiency at frequencies up to 2.2MHz. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.2V to 40V, the LTM8074 supports an output voltage range of 0.8V to 12V and a switching frequency range of 200kHz to 2.2MHz, each set by a single resistor. Only the input and output filter capacitors are needed to finish the design.The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The LTM8074 is packaged in a thermally enhanced, compact over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8074 is RoHS compliant.APPLICATIONSAutomotive Battery RegulationPower for Portable ProductsDistributed Supply RegulationIndustrial SuppliesWall Transformer Regulation
