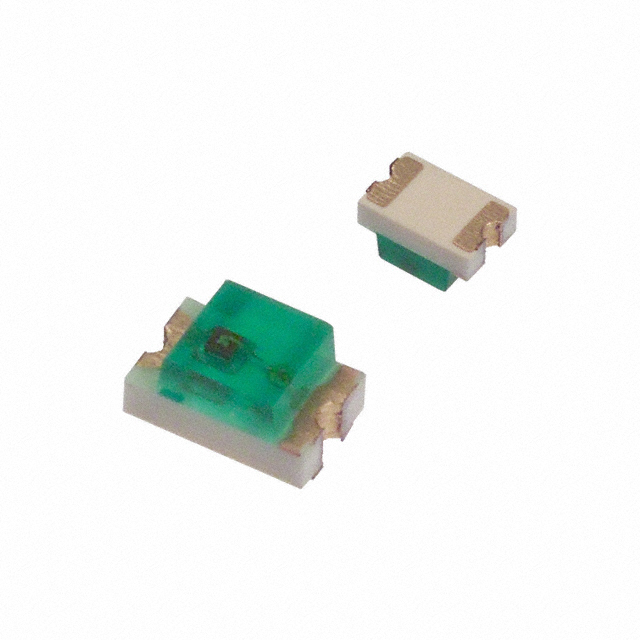

CMD17-21VGD/TR8

Active

Visual Communications Company - VCC

LED GREEN DIFFUSED 0805 SMD

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

LED GREEN DIFFUSED 0805 SMD

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Supplier Device Package	Lens Style	Height (Max) [Max]	Lens Color	Configuration	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Color	Millicandela Rating	Lens Size [y]	Lens Size [x]	Package / Case	Current - Test	Lens Transparency	Mounting Type
Visual Communications Company - VCC CMD17-21VGC/TR8	2.1 V	570 nm	0805	Rectangle with Flat Top	1.2 mm	Colorless	Standard	2 mm	1.25 mm	140 °	Green	10 mcd	1.25 mm	1.4 mm	0805	20 mA	Clear	Surface Mount
Visual Communications Company - VCC CMD17-21VGD/TR8	2.1 V	570 nm	0805	Rectangle with Flat Top	1.2 mm	Green	Standard	2 mm	1.25 mm	140 °	Green	7 mcd	1.25 mm	1.4 mm	0805	20 mA	Diffused	Surface Mount
Visual Communications Company - VCC CMD17-21VYD/TR8	2 V	585 nm	0805	Rectangle with Flat Top	1.2 mm	Yellow	Standard	2 mm	1.25 mm	140 °	Yellow	4 mcd	1.25 mm	1.4 mm	0805	20 mA	Diffused	Surface Mount
Visual Communications Company - VCC CMD17-21UGC/TR8	2.1 V	570 nm	0805	Rectangle with Flat Top	1.2 mm	Colorless	Standard	2 mm	1.25 mm	140 °	Green	15 mcd	1.25 mm	1.4 mm	0805	20 mA	Clear	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green LED Indication - Discrete 2.1V 0805 (2012 Metric)
