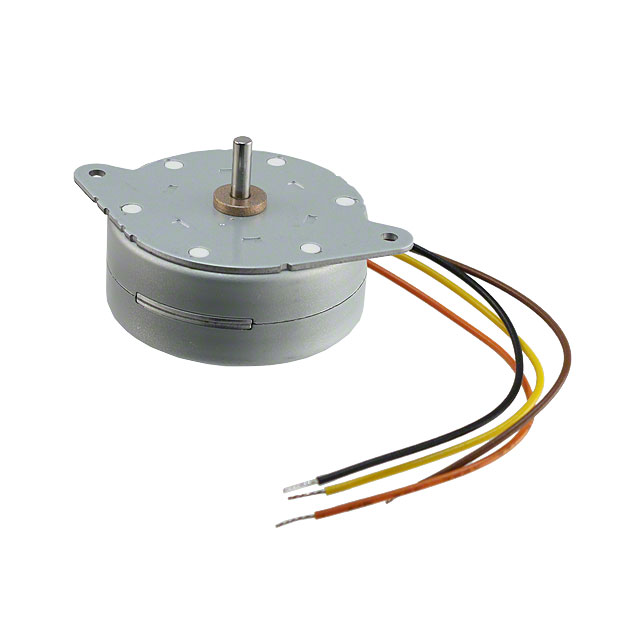

PM55L-048-HHD0
ActiveNMB TECHNOLOGIES
STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 7.5 °, 167 MN-M, 600 MA
Deep-Dive with AI
Search across all available documentation for this part.
PM55L-048-HHD0
ActiveNMB TECHNOLOGIES
STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 7.5 °, 167 MN-M, 600 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM55L-048-HHD0 |
|---|---|
| Coil Resistance | 5.5 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 600 mA |
| Diameter - Shaft [diameter] | 0.157 in |
| Diameter - Shaft [diameter] | 4 mm |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 0.591 in |
| Length - Shaft and Bearing [x] | 15 mm |
| Mounting Hole Spacing | 2.56 in |
| Mounting Hole Spacing | 65 mm |
| Size / Dimension [diameter] | 2.16 in |
| Size / Dimension [diameter] | 55 mm |
| Step Angle | 7.5 ° |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 23.4 oz-in |
| Torque - Holding (oz-in / mNm) | 167 mNm |
| Type | Permanent Magnet |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PM55L Series
Bipolar Stepper Motor Permanent Magnet Frame Size 48.0 Step 600 mA 24VDC
