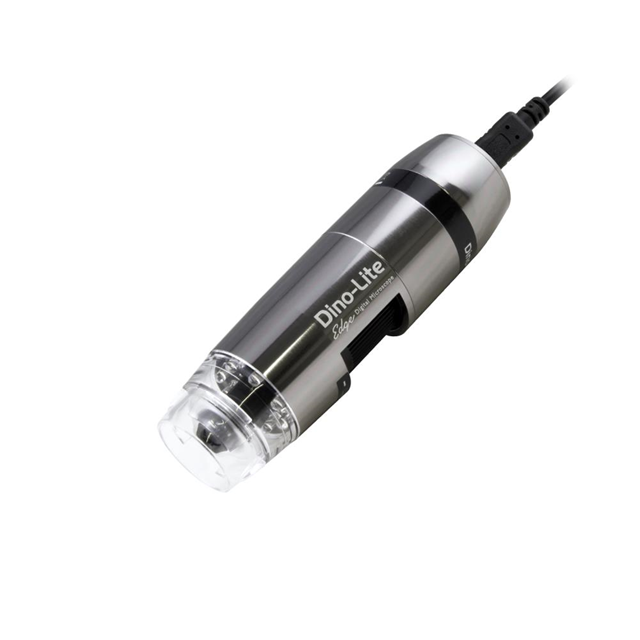

AM4517MT8A

Active

Dino-Lite

800X USB MICROSCOPE

Search across all available documentation for this part.

Active

Dino-Lite

800X USB MICROSCOPE

Technical Specifications

Parameters and characteristics for this part

Part	Field of View [Min]	Field of View [Max]	Field of View [Min]	Field of View [Max]	Working Distance [Max]	Working Distance [Min]	Working Distance [Max]	Working Distance [Min]	Type	Camera Type	Camera Type	Illumination	Interface	Magnification Range [Min]	Magnification Range [Max]
Dino-Lite AM4517MT8A	0.017 in	0.022 in	0.43 mm	0.56 mm	0.252 "	0.232 "	6.4 mm	5.9 mm	Microscope Portable	1.3 MP	CMOS	LED White (8)	USB	700 x	900 x
Dino-Lite AM4517MZTL	0.11 " 2.8 mm	1.539 " 39.1 mm			9.354 "	1.307 "	237.6 mm	33.2 mm	Microscope Portable	1.3 MP	CMOS	LED White (8)	USB	10 x	140 x
Dino-Lite AM4517MZT	0.071 in	0.768 in	1.8 mm	19.5 mm	2.343 "	0.445 "	59.5 mm	11.3 mm	Microscope Portable	1.3 MP	CMOS	LED White (8)	USB	20 x	220 x

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1095.00

General part information

Microscope, Portable 700x ~ 900x LED, White (8)

Technical documentation and resources

No documents available
