BL0105F2635161S1PCAT

Active

GlobTek, Inc.

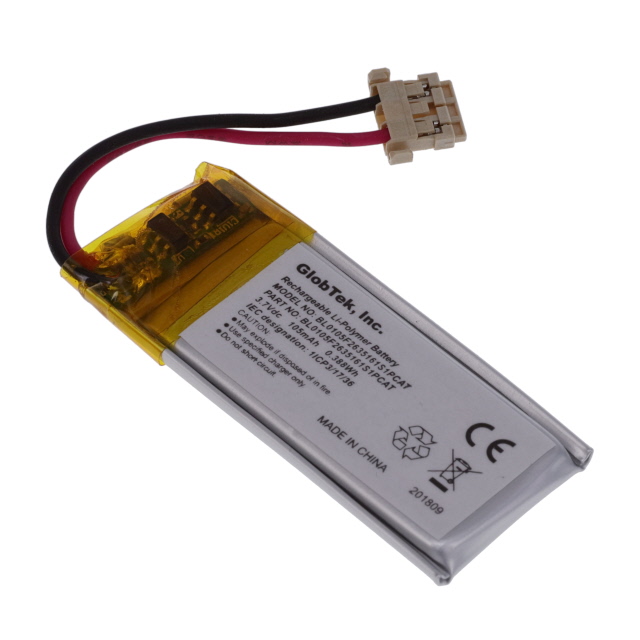

BATT LITH-ION 3.7V 105MAH 261635

Search across all available documentation for this part.

Active

GlobTek, Inc.

BATT LITH-ION 3.7V 105MAH 261635

Technical Specifications

Parameters and characteristics for this part

Specification	BL0105F2635161S1PCAT

Battery Chemistry	Lithium-Ion
Capacity	105 mAh
Discharge Rate	105 mA
Shipping Info	Due to restrictions, only ground shipment is allowed.
Size / Dimension [x]	1.46 in
Size / Dimension [x]	37 mm
Size / Dimension [y]	0.65 in
Size / Dimension [y]	16.5 mm
Size / Dimension [z]	0.11 in
Size / Dimension [z]	2.8 mm
Standard Charge Current	50 mA
Standard Charge Time	2.5 hrs
Voltage - Rated	3.7 V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Capacity	Voltage - Rated	Standard Charge Time	Standard Charge Current	Discharge Rate	Shipping Info	Battery Chemistry
GlobTek, Inc. BL0105F2635161S1PCAT	1.46 in	0.11 in	0.65 in	2.8 mm	37 mm	16.5 mm	105 mAh	3.7 V	2.5 hrs	50 mA	105 mA	Due to restrictions only ground shipment is allowed.	Lithium-Ion

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

261635 3.7 V Lithium-Ion Battery Rechargeable (Secondary) 105mAh
