APM-I-30A

Active

OptiFuse

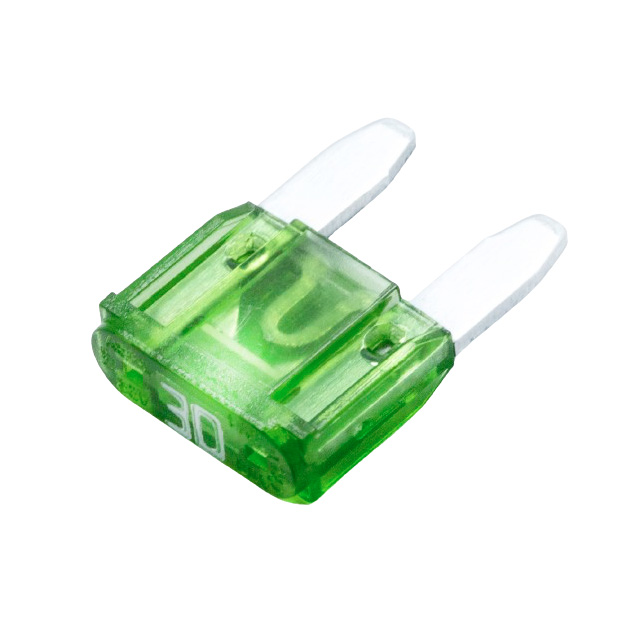

FUSE AUTO 30A 32VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 30A 32VDC BLADE MINI

Technical Specifications

Parameters and characteristics for this part

Specification	APM-I-30A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Green
Current Rating (Amps)	30 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature
Response Time	Fast Blow
Voltage Rating - DC	32 V

Part	Fuse Type	Color	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Response Time	Approval Agency	Package / Case	Mounting Type	Voltage Rating - DC
OptiFuse APM-I-3A	Automotive	Violet	3 A	1 kA	Fast Blow	ISO SAE	Blade Miniature	Requires Holder	32 V
OptiFuse APM-I-5A	Automotive	Tan	5 A	1 kA	Fast Blow	ISO SAE	Blade Miniature	Requires Holder	32 V
OptiFuse APM-I-15A	Automotive	Blue	15 A	1 kA	Fast Blow	ISO SAE	Blade Miniature	Requires Holder	32 V
OptiFuse APM-I-10A	Automotive	Red	10 A	1 kA	Fast Blow	ISO SAE	Blade Miniature	Requires Holder	32 V
OptiFuse APM-I-4A	Automotive	Pink	4 A	1 kA	Fast Blow	ISO SAE	Blade Miniature	Requires Holder	32 V
OptiFuse APM-I-30A	Automotive	Green	30 A	1 kA	Fast Blow	ISO SAE	Blade Miniature	Requires Holder	32 V
OptiFuse APM-I-20A	Automotive	Yellow	20 A	1 kA	Fast Blow	ISO SAE	Blade Miniature	Requires Holder	32 V
OptiFuse APM-I-25A	Automotive	Clear	25 A	1 kA	Fast Blow	ISO SAE	Blade Miniature	Requires Holder	32 V
OptiFuse APM-I-2A	Automotive	Gray	2 A	1 kA	Fast Blow	ISO SAE	Blade Miniature	Requires Holder	32 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.35

General part information

30 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
