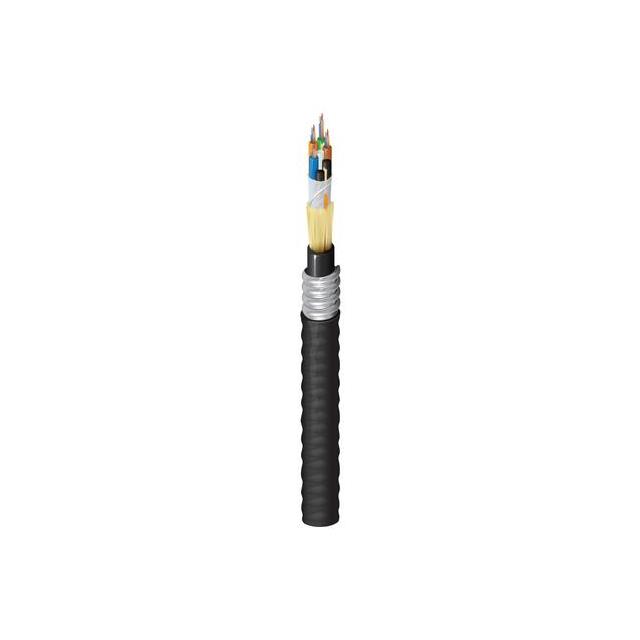

FS3H048NG
ActiveBelden Inc.
CBL FIBER OPTIC 125UM MULTIMODE
Deep-Dive with AI
Search across all available documentation for this part.
FS3H048NG
ActiveBelden Inc.
CBL FIBER OPTIC 125UM MULTIMODE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FS3H048NG |
|---|---|
| Cladding Diameter [diameter] | 125 µm |
| Core Diameter [diameter] | 50 µm |
| Features | 48 Fibers |
| Features | Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 0.505 in |
| Jacket (Insulation) Diameter [diameter] | 12.83 mm |
| Jacket (Insulation) Material | Polyethylene (PE) |
| Jacket Color | Black |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Multiple Fibers |
| Tensile Strength | 81.6 kg |
| Type | Multimode |
FS3H048 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Style | Features | Features | Jacket Color | Core Diameter [diameter] | Type | Cladding Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Tensile Strength |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. | -40 °C | 70 °C | Multiple Fibers | Rip Cord Steel Armor | 48 Fibers | Black | 50 µm | Multimode | 125 µm | 15.49 mm | 0.61 " | Poly-Vinyl Chloride (PVC) | 81.6 kg |
Belden Inc. | -40 °C | 70 °C | Multiple Fibers | Rip Cord | 48 Fibers | Black | 50 µm | Multimode | 125 µm | 12.83 mm | 0.505 in | Polyethylene (PE) | 81.6 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 8.55 | |
Description
General part information
FS3H048 Series
Fiber Optic Cable Black Multimode 125µm
