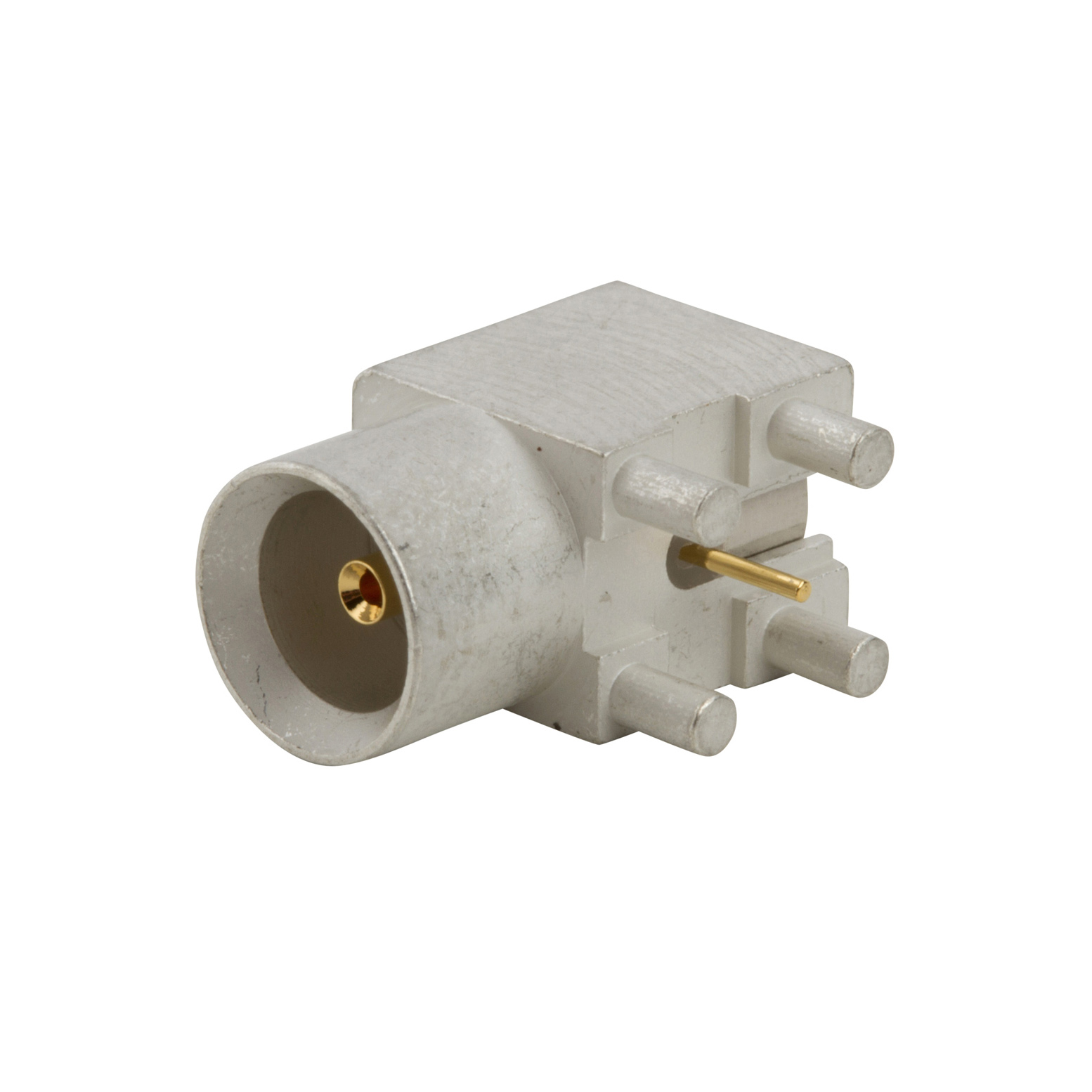

920-192J-71A

Active

Amphenol RF

AFI RIGHT ANGLE PCB SMOOTH BORE JACK THROUGH HOLE 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

AFI RIGHT ANGLE PCB SMOOTH BORE JACK THROUGH HOLE 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	920-192J-71A

Body Finish	Tin
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	AFI
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE), Polymethylpentene (PMP)
Fastening Type	Snap-On
Features	Smooth Bore
Frequency - Max [Max]	6000 MHz
Impedance	75 Ohms
Mating Cycles	200
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Features	Connector Style	Center Contact Plating	Impedance	Mounting Type	Frequency - Max [Max]	Fastening Type	Body Finish	Dielectric Material	Mating Cycles	Center Contact Material	Number of Ports	Connector Type	Shield Termination	Contact Termination	Body Material	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 920-192J-71A	Smooth Bore	AFI	Gold	75 Ohms	Through Hole Right Angle	6000 MHz	Snap-On	Tin	Polymethylpentene (PMP) Polytetrafluoroethylene (PTFE)	200	Beryllium Copper	1	Female Socket Jack	Solder	Solder	Brass	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 14.36
Newark	Each	100	$ 14.93
		250	$ 13.93

General part information

AFI Connector Jack, Female Socket 75 Ohms Through Hole, Right Angle Solder
