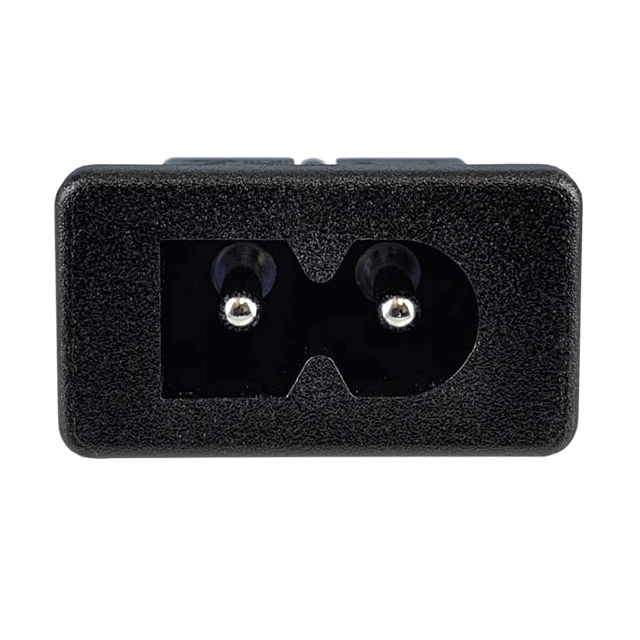

770W-X2/13

Active

Qualtek

PWR ENT RCPT IEC320-C8 PNL SLDR

Search across all available documentation for this part.

Active

Qualtek

PWR ENT RCPT IEC320-C8 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	770W-X2/13

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C8
Connector Type	Receptacle, Male Pins
Current Rating - Appliance Inlet	2.5 A
Filter Type	Unfiltered - Commercial
Mounting Type	Panel Mount, Snap-In
Number of Positions	2
Panel Cutout Dimensions [x]	24.5 mm
Panel Cutout Dimensions [y]	12.5 mm
Panel Thickness [Max]	2 mm
Panel Thickness [Max]	0.079 "
Panel Thickness [Min]	0.6 mm
Panel Thickness [Min]	0.024 in
Termination	Solder Eyelet
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Number of Positions	Voltage Rating - Appliance Inlet	Approval Agency	Termination	Filter Type	Current Rating - Appliance Inlet	Connector Style	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Mounting Type	Panel Thickness [x]	Panel Thickness [x]	Panel Thickness	Panel Thickness [z]	Material Flammability Rating	Panel Thickness
Qualtek 770W-X2/13	Male Pins Receptacle	12.5 mm	24.5 mm	2	250 VAC	CSA UL VDE	Solder Eyelet	Unfiltered - Commercial	2.5 A	IEC 320-C8	0.6 mm	0.024 in	2 mm	0.079 "	Panel Mount Snap-In
Qualtek 770W-X2/07	Male Pins Receptacle	12.5 mm	19.5 mm	2	250 VAC	CSA UL VDE	Solder	Unfiltered - Commercial	2.5 A	IEC 320-C8 Non-Polarized					Panel Mount Snap-In Through Hole Right Angle	2.5 mm	0.098 in
Qualtek 770W-X2/04	Male Pins Receptacle	13 mm	21 mm	2	250 VAC	CSA UL VDE	Solder Eyelet	Unfiltered - Commercial	2.5 A	IEC 320-C8 Non-Polarized					Panel Mount Snap-In			5.1 mm	0.201 in
Qualtek 770W-X2/08	Male Pins Receptacle	12.8 mm	20 mm	2	250 VAC	CSA UL VDE	Solder	Unfiltered - Commercial	2.5 A	IEC 320-C8 Non-Polarized					Panel Mount Snap-In Through Hole Right Angle			2.3 mm		UL94 V-0	0.091 "
