SSL5021BDB1205UL

Obsolete

Freescale Semiconductor - NXP

DEMO BD SSL5021 LED DVR 120V 6W

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

DEMO BD SSL5021 LED DVR 120V 6W

Technical Specifications

Parameters and characteristics for this part

Specification	SSL5021BDB1205UL

Contents	Board(s)
Current - Output / Channel [custom]	93 mA
Outputs and Type	1 Non-Isolated Output
Supplied Contents	Board(s)
Utilized IC / Part	SSL5021BTS
Voltage - Input [Max]	140 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output [Max]	60 VDC
Voltage - Output [Min]	40 VDC

Part	Current - Output / Channel	Utilized IC / Part	Voltage - Input	Voltage - Output	Outputs and Type	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output / Channel [custom]	Voltage - Output [Max]	Voltage - Output [Min]	Contents
Freescale Semiconductor - NXP SSL5031BDB1207UL	205 mA	SSL5031BTS	120 VAC	40 V	1 Non-Isolated Output	Board(s)
Freescale Semiconductor - NXP SSL5021BDB1206UL		SSL5021BTS			1 Non-Isolated Output	Board(s)	265 VAC	150 VAC	93 mA	60 VDC	40 VDC
Freescale Semiconductor - NXP SSL5021BDB1205UL		SSL5021BTS			1 Non-Isolated Output	Board(s)	140 VAC	85 VAC	93 mA	60 VDC	40 VDC	Board(s)
Freescale Semiconductor - NXP SSL5021BDB1268UL	85 mA	SSL5021BTS			1 Non-Isolated Output	Board(s)	138 VAC	96 VAC		65 V	40 VDC
Freescale Semiconductor - NXP SSL5031BDB1208UL	105 mA	SSL5031BTS	230 VAC	80 V	1 Non-Isolated Output	Board(s)
Freescale Semiconductor - NXP SSL5021BDB1267UL	71 mA	SSL5021BTS			1 Non-Isolated Output	Board(s)	265 VAC	170 VAC		88 V	40 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 101.00

General part information

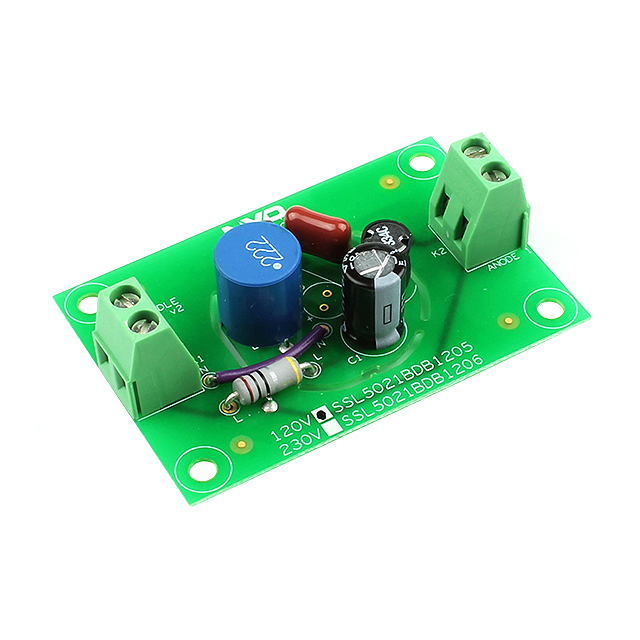

SSL5021BTS GreenChip™ 1 Non-Isolated Output LED Driver Evaluation Board
