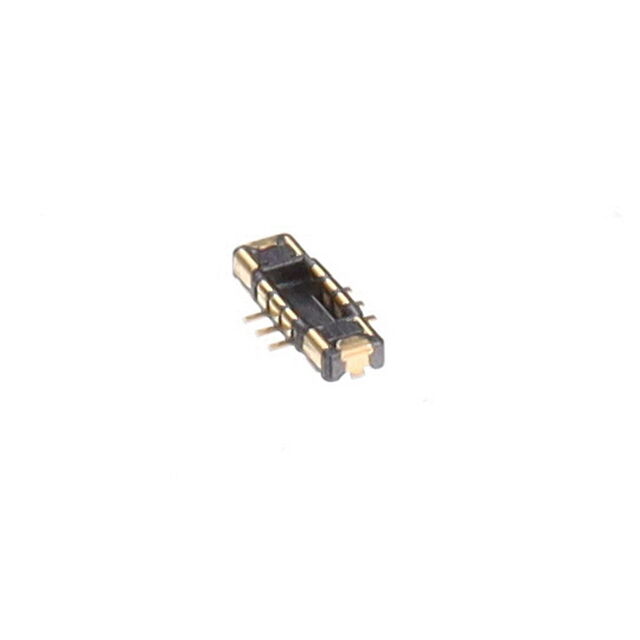

BM28B0.6-6DP/2-0.35V(51)

Active

Hirose Electric USA, Inc.

0.35MM PITCH, 0.6MM HEIGHT, BOARD-TO-BOARD / FPC-TO-BOARD WITH UP TO 5A

Deep-Dive with AI

Search across all available documentation for this part.

BM28B0.6-6DP/2-0.35V(51)

Active

Hirose Electric USA, Inc.

0.35MM PITCH, 0.6MM HEIGHT, BOARD-TO-BOARD / FPC-TO-BOARD WITH UP TO 5A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BM28B0.6-6DP/2-0.35V(51)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Features	Solder Retention
Height Above Board	0.46 mm
Height Above Board	0.018 in
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	6
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

BM28B0.6 Series

Part	Connector Type	Mounting Type	Features	Number of Positions	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Mated Stacking Heights	Number of Rows	Number of Positions [custom]	Number of Positions [custom]	Number of Positions
Hirose Electric USA, Inc. BM28B0.6-34DP/2-0.35V(53)	Header Outer Shroud Contacts	Surface Mount	Solder Retention	34	0.46 mm	0.018 in	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	0.6 mm	2
Hirose Electric USA, Inc. BM28B0.6-44DP/2-0.35V(51)	Header Outer Shroud Contacts	Surface Mount	Solder Retention	46	0.46 mm	0.018 in	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	0.6 mm	2	2	44 Positions
Hirose Electric USA, Inc. BM28B0.6-44DP/2-0.35V(53)	Header Outer Shroud Contacts	Surface Mount	Solder Retention	46	0.46 mm	0.018 in	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	0.6 mm	2	2	44 Positions
Hirose Electric USA, Inc. BM28B0.6-16DS/2-0.35V(61)
Hirose Electric USA, Inc. BM28B0.6-6DP/2-0.35V(51)	Header Outer Shroud Contacts	Surface Mount	Solder Retention	6	0.46 mm	0.018 in	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	0.6 mm	2
Hirose Electric USA, Inc. BM28B0.6-16DP/2-0.35V(51)	Header Outer Shroud Contacts	Surface Mount	Solder Retention		0.46 mm	0.018 in	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	0.6 mm	2			16
Hirose Electric USA, Inc. BM28B0.6-40DP/2-0.35V(53)	Header Outer Shroud Contacts	Surface Mount	Solder Retention	40	0.46 mm	0.018 in	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	0.6 mm	2
Hirose Electric USA, Inc. BM28B0.6-6DS/2-0.35V(51)	Center Strip Contacts Receptacle	Surface Mount	Solder Retention	6	0.61 mm	0.024 in	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	0.6 mm	2
Hirose Electric USA, Inc. BM28B0.6-10DS/2-0.35V(53)	Center Strip Contacts Receptacle	Surface Mount	Solder Retention	10	0.61 mm	0.024 in	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	0.6 mm	2
Hirose Electric USA, Inc. BM28B0.6-60DP/2-0.35V(53)	Header Outer Shroud Contacts	Surface Mount	Solder Retention	62	0.46 mm	0.018 in	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	0.6 mm	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.68
		10	$ 0.59
		25	$ 0.54
		50	$ 0.51
		100	$ 0.49
		250	$ 0.45
		500	$ 0.42
		1000	$ 0.35
		2500	$ 0.32
	Digi-Reel®	1	$ 0.68
		10	$ 0.59
		25	$ 0.54
		50	$ 0.51
		100	$ 0.49
		250	$ 0.45
		500	$ 0.42
		1000	$ 0.35
		2500	$ 0.32
	Tape & Reel (TR)	20000	$ 0.26
Newark	Each (Supplied on Full Reel)	1	$ 0.48
		100000	$ 0.42

Description

General part information

BM28B0.6 Series

6 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

No documents available
