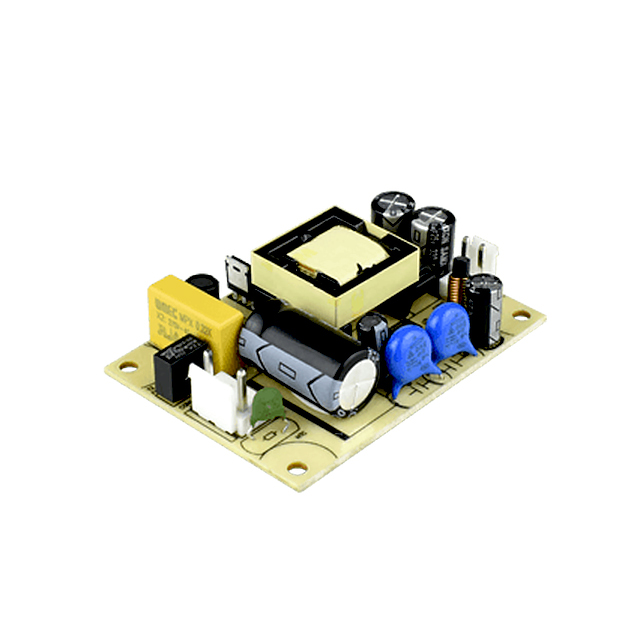

VOF-15C-S15

CUI Inc.

AC/DC CONVERTER 15V 15W

Search across all available documentation for this part.

CUI Inc.

AC/DC CONVERTER 15V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-15C-S15

Applications	Household Appliances, ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output 1	1 A
Efficiency	81 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	15 W
Size / Dimension [x]	63.5 mm
Size / Dimension [x]	63.5 mm
Size / Dimension [y]	45.7 mm
Size / Dimension [y]	1.8 in
Size / Dimension [z]	19 mm
Size / Dimension [z]	0.75 in
Standard Number	62368-1, 55024, 55032 Class A
Type	Open Frame
Voltage - Input [Max]	264 VAC, 370 VDC
Voltage - Input [Min]	100 V, 85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

Part	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Efficiency	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Voltage - Output 1	Type	Features	Voltage - Isolation	Applications	Current - Output 1	Power (Watts)
CUI Inc. VOF-15C-S9	1	264 VAC 370 VDC	85 VAC 100 V	Chassis Mount	78 %	55024 55032 Class A 62368-1	-25 °C	70 °C	19 mm	45.7 mm	1.8 in	63.5 mm	63.5 mm	0.75 in	CB Scheme EN IEC UL	9 V	Open Frame	Universal Input	3000 V	Household Appliances ITE (Commercial)	1.6 A
CUI Inc. VOF-15C-S24	1	264 VAC 370 VDC	85 VAC 100 V	Chassis Mount		55024 55032 Class A 62368-1	-25 °C	70 °C	19 mm	45.7 mm	1.8 in	63.5 mm	63.5 mm	0.75 in	CB Scheme EN IEC UL	24 V	Open Frame	Universal Input	3000 V	Household Appliances ITE (Commercial)		15 W
CUI Inc. VOF-15C-S15	1	264 VAC 370 VDC	85 VAC 100 V	Chassis Mount	81 %	55024 55032 Class A 62368-1	-25 °C	70 °C	19 mm	45.7 mm	1.8 in	63.5 mm	63.5 mm	0.75 in	CB Scheme EN IEC UL	15 V	Open Frame	Universal Input	3000 V	Household Appliances ITE (Commercial)	1 A	15 W
CUI Inc. VOF-15C-S3	1	264 VAC 370 VDC	85 VAC 100 V	Chassis Mount	72 %	55024 55032 Class A 62368-1	-25 °C	70 °C	19 mm	45.7 mm	1.8 in	63.5 mm	63.5 mm	0.75 in	CB Scheme EN IEC UL	3.3 V	Open Frame	Universal Input	3000 V	Household Appliances ITE (Commercial)	3 A	10 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 8.81

General part information

Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC, 100 ~ 370 VDC Input
