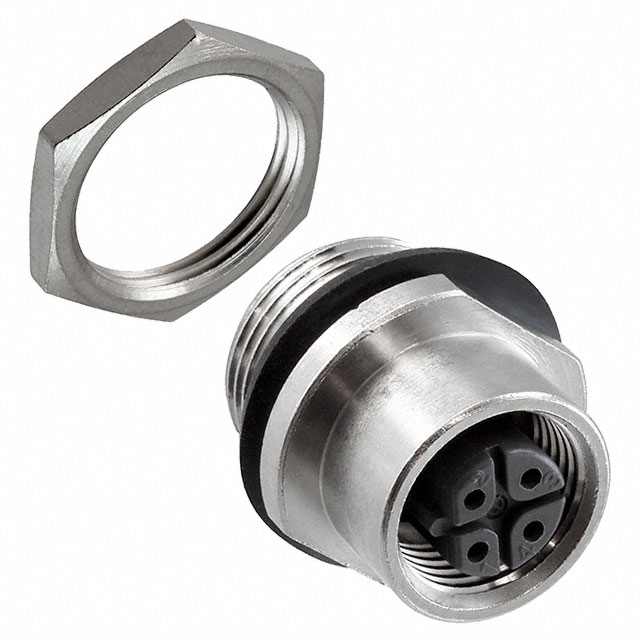

XS2P-A421-2

Active

Omron Electronics Inc-EMC Div

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	XS2P-A421-2

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Material	Brass
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-4
Voltage Rating	250 VAC

Part	Shell Material	Shell Finish	Material Flammability Rating	Shell Size - Insert	Connector Type	Primary Material	Voltage Rating	Orientation	Contact Material	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Color	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Mating	Insert Material	Mounting Feature
Omron Electronics Inc-EMC Div XS2P-A421-2	Brass	Nickel	UL94 V-0	M12-4	Receptacle Female Sockets	Metal	250 VAC	Keyed	Brass	IP67 - Dust Tight Waterproof	16 Áin	0.41 Ám	4	Silver	70 °C	-25 °C	3 A	Gold	Polybutylene Terephthalate (PBT)	Bulkhead - Rear Side Nut
