346-43-156-41-013000

Active

Mill-Max Manufacturing Corp.

CONN SOCKET SIP 56POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

346-43-156-41-013000

Active

Mill-Max Manufacturing Corp.

CONN SOCKET SIP 56POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-43-156-41-013000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	56
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Press-Fit
Termination Post Length	4.45 mm
Termination Post Length	0.175 in
Type	SIP

346-43 Series

Part	Type	Contact Finish - Post	Contact Material - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Current Rating (Amps)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Termination	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Housing Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination Post Length	Termination Post Length	Pitch - Post	Pitch - Post	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Contact Shape	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Fastening Type	Number of Rows	Connector Type	Number of Positions	Insulation Material	Voltage Rating	Number of Positions or Pins (Grid)
Mill-Max Manufacturing Corp. 346-43-145-41-013000	SIP	Tin	Brass Alloy	200 µin	5.08 µm	Through Hole	3 A	45	1 x 45	Press-Fit	Beryllium Copper	-55 °C	125 °C	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	4.45 mm	0.175 in	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 346-43-156-41-012000		Tin		200 µin	5.08 µm	Through Hole	3 A			Press-Fit		-55 °C	125 °C	Gold	0.1 in	2.54 mm		30 Áin	0.76 Ám					Beryllium Copper	0.12 in	3.05 mm	Female Socket	Circular	UL94 V-0	Black	All	Push-Pull	1	Receptacle	56	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	100 V 150 VDC
Mill-Max Manufacturing Corp. 346-43-102-41-012000		Tin		200 µin	5.08 µm	Through Hole	3 A			Press-Fit		-55 °C	125 °C	Gold	0.1 in	2.54 mm		30 Áin	0.76 Ám					Beryllium Copper	0.12 in	3.05 mm	Female Socket	Circular	UL94 V-0	Black	All	Push-Pull	1	Receptacle	2	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	100 V 150 VDC
Mill-Max Manufacturing Corp. 346-43-105-41-012000		Tin		200 µin	5.08 µm	Through Hole	3 A			Press-Fit		-55 °C	125 °C	Gold	0.1 in	2.54 mm		30 Áin	0.76 Ám					Beryllium Copper	0.12 in	3.05 mm	Female Socket	Circular	UL94 V-0	Black	All	Push-Pull	1	Receptacle		Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	100 V 150 VDC
Mill-Max Manufacturing Corp. 346-43-156-41-013000	SIP	Tin	Brass Alloy	200 µin	5.08 µm	Through Hole	3 A			Press-Fit	Beryllium Copper	-55 °C	125 °C	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	4.45 mm	0.175 in	2.54 mm	0.1 in															56
Mill-Max Manufacturing Corp. 346-43-134-41-013000	SIP	Tin	Brass Alloy	200 µin	5.08 µm	Through Hole	3 A			Press-Fit	Beryllium Copper	-55 °C	125 °C	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	4.45 mm	0.175 in	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 346-43-153-41-013000	SIP	Tin	Brass Alloy	200 µin	5.08 µm	Through Hole	3 A			Press-Fit	Beryllium Copper	-55 °C	125 °C	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	4.45 mm	0.175 in	2.54 mm	0.1 in															53
Mill-Max Manufacturing Corp. 346-43-154-41-013000	SIP	Tin	Brass Alloy	200 µin	5.08 µm	Through Hole	3 A			Press-Fit	Beryllium Copper	-55 °C	125 °C	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	4.45 mm	0.175 in	2.54 mm	0.1 in															54
Mill-Max Manufacturing Corp. 346-43-112-41-013000	SIP	Tin	Brass Alloy	200 µin	5.08 µm	Through Hole	3 A		1 x 12	Press-Fit	Beryllium Copper	-55 °C	125 °C	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30 Áin	0.76 Ám	4.45 mm	0.175 in	2.54 mm	0.1 in															12
Mill-Max Manufacturing Corp. 346-43-131-41-012000		Tin		200 µin	5.08 µm	Through Hole	3 A			Press-Fit		-55 °C	125 °C	Gold	0.1 in	2.54 mm		30 Áin	0.76 Ám					Beryllium Copper	0.12 in	3.05 mm	Female Socket	Circular	UL94 V-0	Black	All	Push-Pull	1	Receptacle	31	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	100 V 150 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.13
		10	$ 9.87
		25	$ 9.49
		50	$ 9.11
		100	$ 8.60
		250	$ 7.84
		500	$ 7.34
		1000	$ 6.73

Description

General part information

346-43 Series

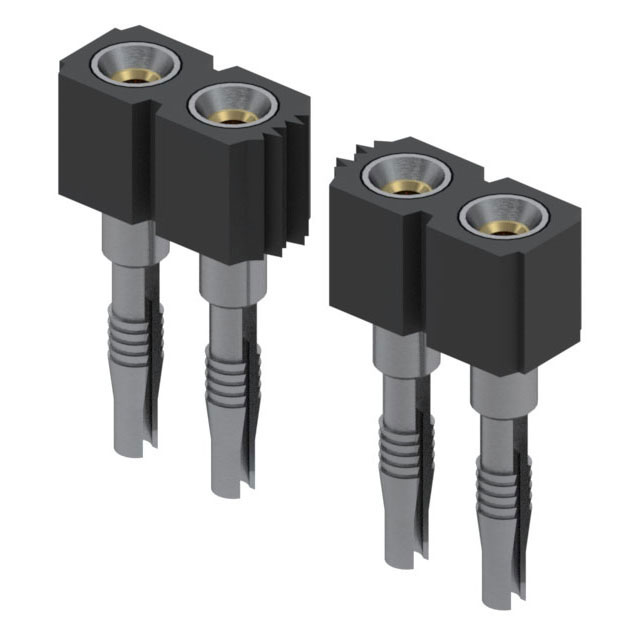

56 (1 x 56) Pos SIP Socket Gold Through Hole
