MP86905GR-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
INTELLI-PHASE SOLUTION (INT FET) THIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP86905GR-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
INTELLI-PHASE SOLUTION (INT FET) THIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP86905GR-Z |
|---|---|
| Applications | General Purpose |
| Current - Output / Channel | 50 A |
| Fault Protection | UVLO, Current Limiting, Over Temperature |
| Features | Status Flag, Diode Emulation, Bootstrap Circuit |
| Load Type | Capacitive, Inductive, Resistive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Supplier Device Package | 23-QFN (4x4) |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 16 V |
| Voltage - Load [Min] | 4.5 V |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.48 | |
| 10 | $ 5.82 | |||
| 25 | $ 5.50 | |||
| 100 | $ 4.77 | |||
| 250 | $ 4.52 | |||
| 500 | $ 4.06 | |||
| 1000 | $ 3.42 | |||
| 2500 | $ 3.25 | |||
| Digi-Reel® | 1 | $ 6.48 | ||
| 10 | $ 5.82 | |||
| 25 | $ 5.50 | |||
| 100 | $ 4.77 | |||
| 250 | $ 4.52 | |||
| 500 | $ 4.06 | |||
| 1000 | $ 3.42 | |||
| 2500 | $ 3.25 | |||
| Tape & Reel (TR) | 5000 | $ 3.13 | ||
Description
General part information
MP86905 Series

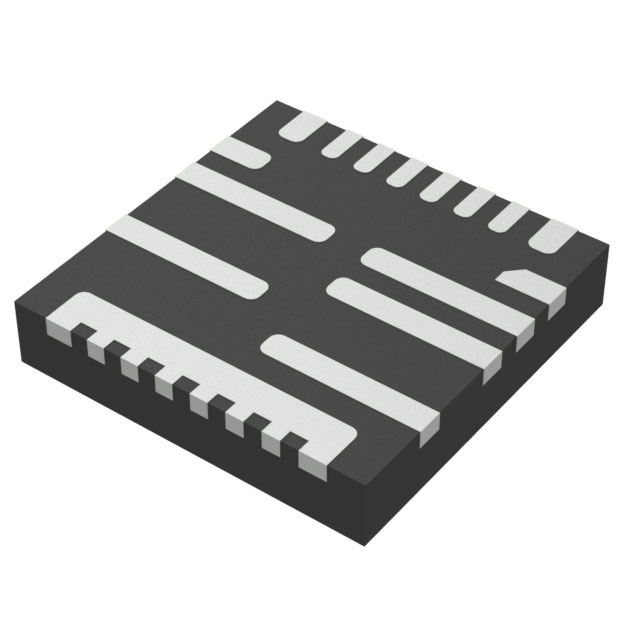

Half Bridge Driver General Purpose Power MOSFET 23-QFN (4x4)
Documents
Technical documentation and resources
