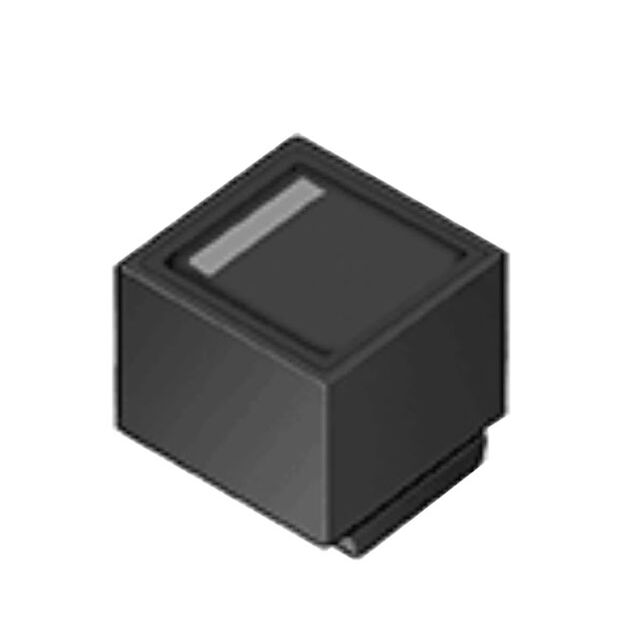

DLW5BSZ801TQ2L
ActiveMurata Power Solutions Inc.
CMC 1.5A 2LN 800 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DLW5BSZ801TQ2L
ActiveMurata Power Solutions Inc.
CMC 1.5A 2LN 800 OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLW5BSZ801TQ2L |
|---|---|
| Current Rating (Max) [Max] | 1.5 A |
| DC Resistance (DCR) (Max) [Max] | 56 mOhm |
| Height (Max) [Max] | 4.5 mm |
| Height (Max) [Max] | 0.177 in |
| Impedance @ Frequency | 800 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.86 | |
| 10 | $ 2.43 | |||
| 25 | $ 2.24 | |||
| 50 | $ 2.00 | |||
| 100 | $ 1.67 | |||
| Digi-Reel® | 1 | $ 2.86 | ||
| 10 | $ 2.43 | |||
| 25 | $ 2.24 | |||
| 50 | $ 2.00 | |||
| 100 | $ 1.67 | |||
| Tape & Reel (TR) | 400 | $ 1.62 | ||
| 800 | $ 1.48 | |||
| 1200 | $ 1.43 | |||
| 2800 | $ 1.38 | |||
Description
General part information
DLW5BSZ Series
2 Line Common Mode Choke Surface Mount 800 Ohms @ 100 MHz 1.5A DCR 56mOhm
