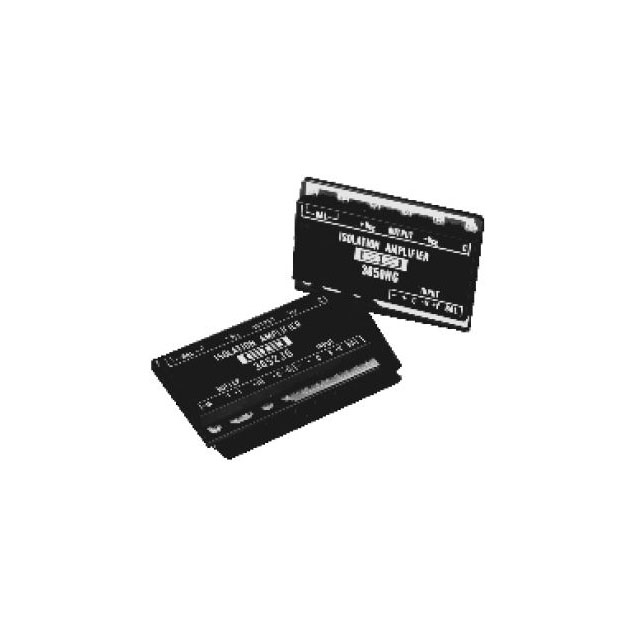

3650MG

Obsolete

Texas Instruments

IC OPAMP ISOLATION 1 CIRC 32CDIP

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC OPAMP ISOLATION 1 CIRC 32CDIP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Circuits	Amplifier Type	Current - Input Bias	Current - Output / Channel	Slew Rate	Package / Case	Voltage - Supply Span (Min) [Min]	Supplier Device Package	Voltage - Supply Span (Max) [Max]	Current - Supply	-3db Bandwidth	Operating Temperature [Max]	Mounting Type	Voltage - Input Offset
Texas Instruments 3650HG	1	Isolation	10 nA	5 mA	1.2 V/µs	32-CDIP	16 V	32-CDIP	36 V	2.3 mA	15 kHz	85 °C	Through Hole
Texas Instruments 3650MG	1	Isolation	10 nA	5 mA	1.2 V/µs	32-CDIP	16 V	32-CDIP	36 V	2.3 mA	15 kHz	85 °C	Through Hole
Texas Instruments 3650JG	1	Isolation	10 nA	5 mA	1.2 V/µs	32-CDIP	16 V	32-CDIP	36 V	2.3 mA	15 kHz	85 °C	Through Hole	1 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolation Amplifier 1 Circuit 32-CDIP
