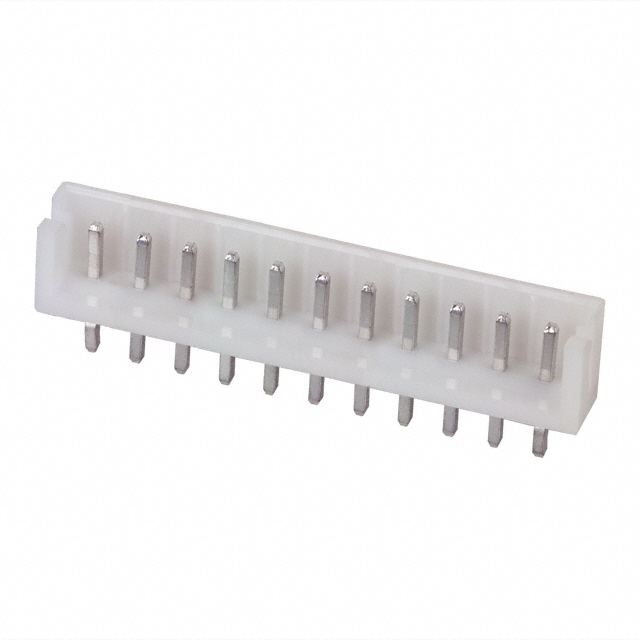

B11B-EH-A

Active

JST Sales America Inc.

CONN HEADER VERT 11POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 11POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B11B-EH-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	8.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Contact Length - Mating	Contact Length - Mating	Style	Connector Type	Contact Type	Contact Material	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions Loaded	Shrouding	Contact Length - Post	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Voltage Rating	Mated Stacking Heights	Number of Rows	Material Flammability Rating	Contact Shape	Insulation Color	Number of Positions	Fastening Type	Mounting Type	Insulation Height	Insulation Height	Current Rating (Amps)
JST Sales America Inc. B11B-EH-A	0.13 in	3.3 mm	Board to Cable/Wire	Header	Male Pin	Brass	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Press-Fit Solder	All	Shrouded - 3 Wall	3.2 mm	0.126 in	2.5 mm	0.098 in	Tin	250 VDC	8.1 mm	1	UL94 V-0	Square	Natural	11	Friction Lock	Through Hole	6 mm	0.236 in	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 11 position 0.098" (2.50mm)
