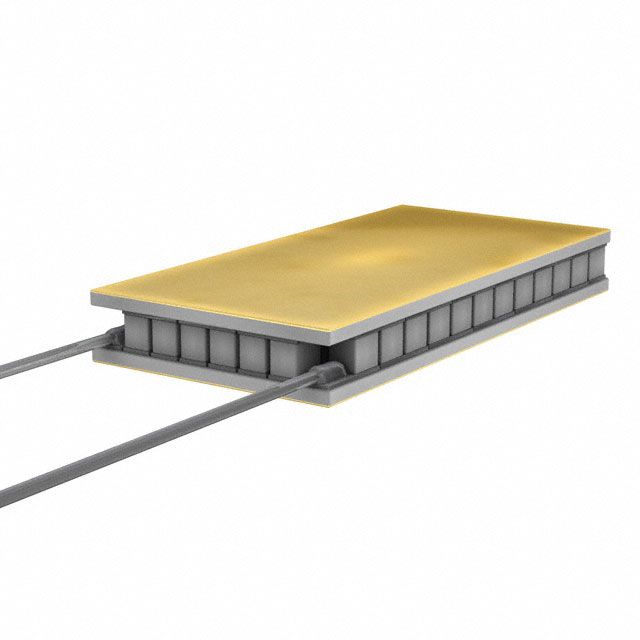

430437-503

Active

Laird Thermal Systems, Inc.

PELTIR ET19,35,F1N,0612,GG,W2.25

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIR ET19,35,F1N,0612,GG,W2.25

Technical Specifications

Parameters and characteristics for this part

Part	Number of Stages	Voltage - Max [Max]	Current - Max [Max]	Delta Tmax @ Th	Features	Resistance	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Qmax @ Th	Operating Temperature	Size / Dimension
Laird Thermal Systems, Inc. 430437-508	1	4 V	1.9 A	67 °C	Lead Wires Non-Sealed	1.92 Ohms	1.62 mm	6 mm	12.2 mm	4.5 W	80 °C
Laird Thermal Systems, Inc. 430437-507	1	4 V	1.9 A	67 °C	Lead Wires Sealed - Silicone RTV	1.92 Ohms	1.65 mm	6 mm	12.2 mm	4.5 W	80 °C
Laird Thermal Systems, Inc. 430437-503	1	4 V	1.9 A	67 °C	Lead Wires Non-Sealed	1.92 Ohms	1.62 mm	6 mm	12.2 mm	4.5 W	80 °C
Laird Thermal Systems, Inc. 430437-506	1	4 V	1.9 A	67 °C	Lead Wires Sealed - Epoxy	1.92 Ohms	1.65 mm	6 mm	12.19 mm	4.5 W	80 °C	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.44
