SKY13498-21
ActiveSkyworks Solutions Inc.
IC RF SWITCH SP10T 2.69GHZ 20MCM
Deep-Dive with AI
Search across all available documentation for this part.
SKY13498-21
ActiveSkyworks Solutions Inc.
IC RF SWITCH SP10T 2.69GHZ 20MCM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13498-21 |
|---|---|
| Circuit | SP10T |
| Frequency Range [Max] | 2.69 GHz |
| Frequency Range [Min] | 700 MHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.95 dB |
| Isolation | 19 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |

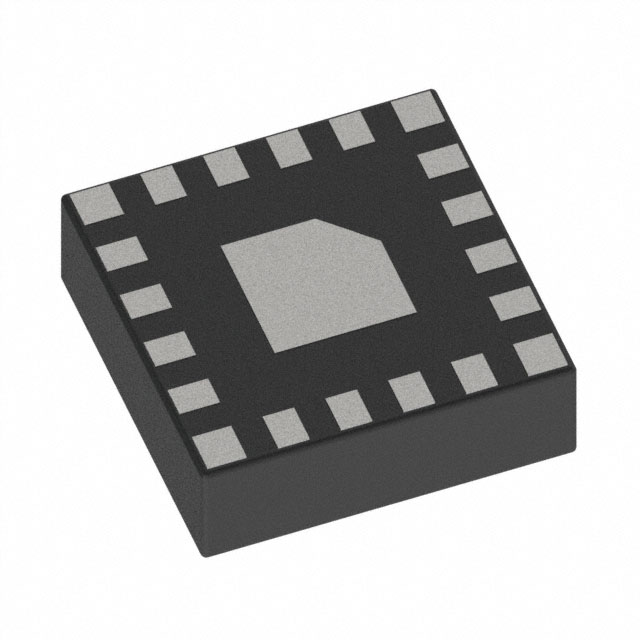

| Package / Case | 20-SMD Module |
| RF Type | General Purpose |
| Supplier Device Package | 20-MCM |
| Supplier Device Package [x] | 2.5 |
| Supplier Device Package [y] | 2.5 |
| Test Frequency | 2.7 GHz |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.45 | |
| 6000 | $ 1.39 | |||
Description
General part information
SKY13498 Series
RF Switch IC General Purpose SP10T 50Ohm 20-MCM (2.5x2.5)
