TR1823PMS1NB

Active

ITT Cannon, LLC

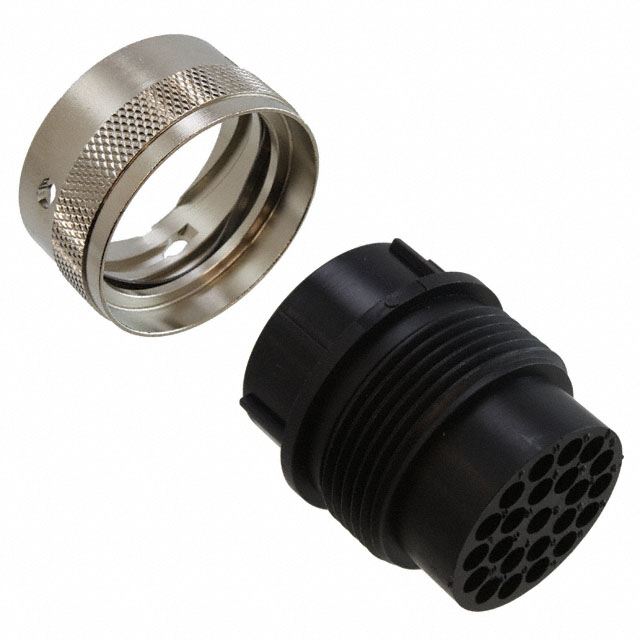

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, PLUG, 23, PIN, CABLE MOUNT, 18-23 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, PLUG, 23, PIN, CABLE MOUNT, 18-23 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TR1823PMS1NB

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Detent Lock
Features	Coupling Nut
Housing Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	23
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert [Max] [custom]	23
Shell Size - Insert [Min] [custom]	18
Shielding	Unshielded
Type	For Male Pins

Part	Shielding	Note	Connector Type	Contact Type	Contact Shape	Mounting Type	Orientation	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Housing Color	Type	Features	Fastening Type	Ingress Protection	Mounting Feature
ITT Cannon, LLC TR1823PMS1NB	Unshielded	Contacts Not Included	Plug Housing	Crimp and Solder Cup	Circular	Free Hanging (In-Line)	Keyed	UL94 V-0	105 ░C	-55 °C	23	18	23	Black	For Male Pins	Coupling Nut	Detent Lock
ITT Cannon, LLC TR1823RMH1NB	Unshielded	Contacts Not Included	Receptacle Housing	Crimp Solder Solder Cup	Circular		Keyed	UL94 V-0	105 ░C	-55 °C	23	18	23	Black	For Male Pins		Detent Lock	IP65 - Dust Tight Water Resistant	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

23 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
