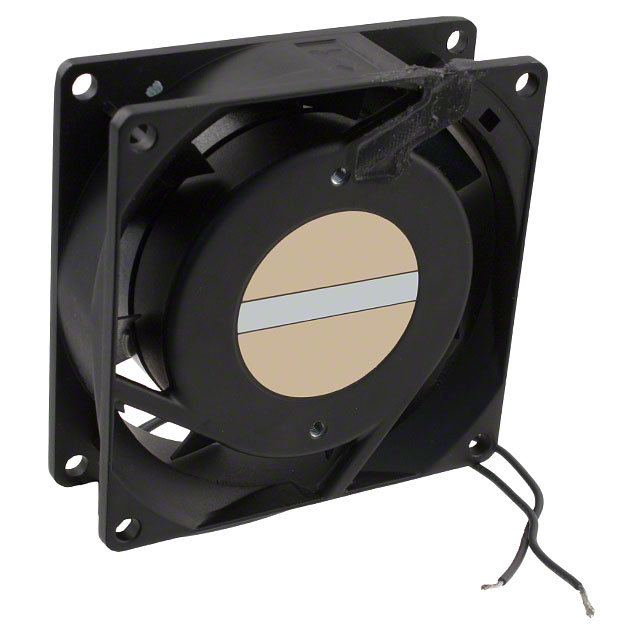

3110MS-23W-B30-AM0

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 80X25MM 230VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

Documents08025MB Series Datasheet +1

3110MS-23W-B30-AM0

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 80X25MM 230VAC WIRE

Deep-Dive with AI

Documents08025MB Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3110MS-23W-B30-AM0

Air Flow	24 CFM
Air Flow	0.672 mł/min
Approval Agency	UL, VDE, CE
Bearing Type	Ball
Current Rating (Amps)	45 mA
Fan Type	Tubeaxial
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polycarbonate (PC), Fiberglass Reinforced
Material - Frame	Aluminum
Noise	31 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	6.5 W
RPM	3000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.22 in H2O
Static Pressure	54.8 Pa
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	239.95 g
Weight	0.529 lb
Width [y]	25 mm

3110MS Series

Part	Material - Frame	Voltage - Rated	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Bearing Type	Noise	RPM	Termination	Power (Watts)	Static Pressure	Static Pressure	Weight	Weight	Approval Agency	Material - Blade	Current Rating (Amps)	Width [x]	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Ingress Protection
NMB TECHNOLOGIES 3110MS-24W-B30-A00	Aluminum	240 VAC	100000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Ball	31 dB(A)	3000 RPM	2 Wire Leads	6.5 W	0.22 in H2O	54.8 Pa	239.95 g	0.529 lb	CE UL VDE	Fiberglass Reinforced Polycarbonate (PC)	45 mA	25.3 mm	0.672 mł/min	24 CFM	80 mm	80 mm
NMB TECHNOLOGIES 3110MS-23W-B30-A00	Aluminum	230 VAC	50000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Ball	31 dB(A)	3000 RPM	2 Wire Leads	6.5 W	0.22 in H2O	54.8 Pa	239.95 g	0.529 lb	CE UL VDE	Fiberglass Reinforced Polycarbonate (PC)	45 mA		0.672 mł/min	24 CFM	80 mm	80 mm	25 mm
NMB TECHNOLOGIES 3110MS-12W-B30-AM0	Aluminum	115 VAC	50000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Ball	31 dB(A)	3000 RPM	2 Wire Leads	6.5 W	0.22 in H2O	54.8 Pa	239.95 g	0.529 lb	CE UL VDE	Fiberglass Reinforced Polycarbonate (PC)	0.09 A		0.672 mł/min	24 CFM	80 mm	80 mm	25 mm	IP54 - Dust Protected Water Resistant
NMB TECHNOLOGIES 3110MS-23W-B30-AM0	Aluminum	230 VAC	50000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Ball	31 dB(A)	3000 RPM	2 Wire Leads	6.5 W	0.22 in H2O	54.8 Pa	239.95 g	0.529 lb	CE UL VDE	Fiberglass Reinforced Polycarbonate (PC)	45 mA		0.672 mł/min	24 CFM	80 mm	80 mm	25 mm	IP54 - Dust Protected Water Resistant
NMB TECHNOLOGIES 3110MS-12W-B30-A00	Aluminum	115 VAC	50000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Ball	31 dB(A)	3000 RPM	2 Wire Leads	6.5 W	0.22 in H2O	54.8 Pa	239.95 g	0.529 lb	CE UL VDE	Fiberglass Reinforced Polycarbonate (PC)	0.09 A		0.672 mł/min	24 CFM	80 mm	80 mm	25 mm
NMB TECHNOLOGIES 3110MS-10W-B30-B00	Aluminum	100 VAC	100000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Ball	31 dB(A)	3000 RPM	2 Wire Leads	6.5 W	0.22 in H2O	54.8 Pa	239.95 g	0.529 lb	CE UL VDE	Fiberglass Reinforced Polycarbonate (PC)	110 mA	25.3 mm	0.672 mł/min	24 CFM	80 mm	80 mm
NMB TECHNOLOGIES 3110MS-22W-B30-B00	Aluminum	220 VAC	100000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Ball	31 dB(A)	3000 RPM	2 Wire Leads	6.5 W	0.22 in H2O	54.8 Pa	239.95 g	0.529 lb	CE UL VDE	Fiberglass Reinforced Polycarbonate (PC)	45 mA	25.3 mm	0.672 mł/min	24 CFM	80 mm	80 mm
NMB TECHNOLOGIES 3110MS-20W-B30-B00	Aluminum	200 VAC	100000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Ball	31 dB(A)	3000 RPM	2 Wire Leads	6 W	0.22 in H2O	54.8 Pa	239.95 g	0.529 lb	CE UL VDE	Fiberglass Reinforced Polycarbonate (PC)	50 mA	25.3 mm	0.672 mł/min	24 CFM	80 mm	80 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3110MS Series

Fan Tubeaxial 230VAC Square - 80mm L x 80mm H Ball 24.0 CFM (0.672m³/min) 2 Wire Leads
