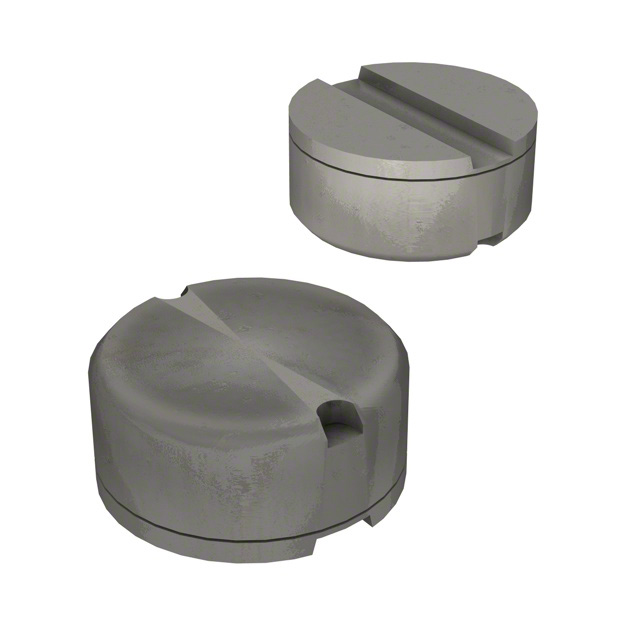

SRR0905-330Y
ActiveBourns Inc.
IND9.9X4.5MM,33UH15%1.2A,SHDSMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRR0905-330Y
ActiveBourns Inc.
IND9.9X4.5MM,33UH15%1.2A,SHDSMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRR0905-330Y |
|---|---|
| Current Rating (Amps) | 1.2 A |
| DC Resistance (DCR) | 110 mOhm |
| Frequency - Self Resonant | 14 MHz |
| Height - Seated (Max) [Max] [z] | 0.189 " |
| Height - Seated (Max) [Max] [z] | 4.8 mm |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 27, 2.52 MHz |
| Shielding | Shielded |
| Size / Dimension [diameter] | 9.9 mm |
| Size / Dimension [diameter] | 0.39 in |
| Tolerance | 15 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.89 | |
| 10 | $ 0.73 | |||
| 25 | $ 0.79 | |||
| 50 | $ 0.74 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.57 | |||
| Digi-Reel® | 1 | $ 0.89 | ||
| 10 | $ 0.73 | |||
| 25 | $ 0.79 | |||
| 50 | $ 0.74 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.57 | |||
| Tape & Reel (TR) | 800 | $ 0.51 | ||
| 1600 | $ 0.48 | |||
| 2400 | $ 0.46 | |||
| 4000 | $ 0.44 | |||
| 5600 | $ 0.43 | |||
| 8000 | $ 0.42 | |||
| 20000 | $ 0.41 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.56 | |
| 1000 | $ 0.54 | |||
| 2000 | $ 0.49 | |||
| 4000 | $ 0.44 | |||
| 6000 | $ 0.43 | |||
| 10000 | $ 0.42 | |||
Description
General part information
SRR0905 Series
33 µH Shielded Drum Core, Wirewound Inductor 1.2 A 110mOhm Max Nonstandard
