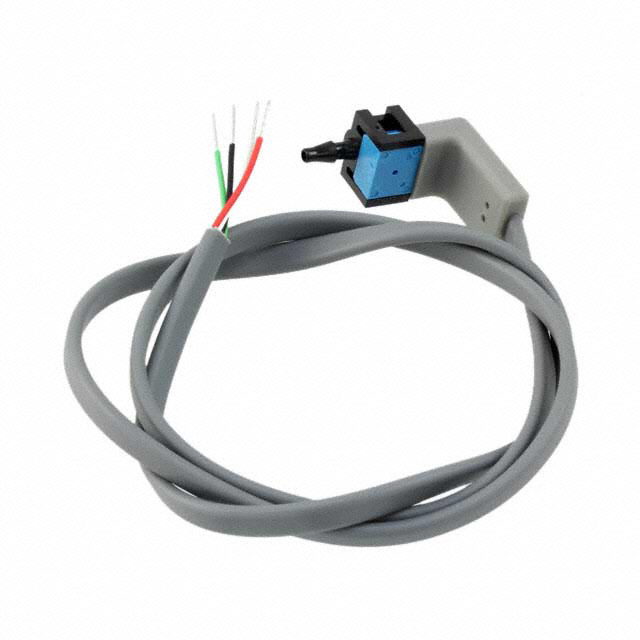

26PCCFG5G
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 15PSIC 0.14" 0.1V
Deep-Dive with AI
Search across all available documentation for this part.
26PCCFG5G
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 15PSIC 0.14" 0.1V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 26PCCFG5G |
|---|---|
| Accuracy | 0.5 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure | 45 PSI |
| Maximum Pressure | 310.26 kPa |
| Mounting Type | Through Hole |
| Operating Pressure | 103.42 kPa |
| Operating Pressure | 15 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 4-SIP Module |
| Port Size | 0.14 " |
| Port Size | 3.56 mm |
| Port Style | Barbed |
| Pressure Type | Compound |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 16 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 93.62 | |
| 5 | $ 87.04 | |||
| 10 | $ 84.60 | |||
Description
General part information
26PCCFG Series
Pressure Sensor ±15PSI (±103.42kPa) Compound Male - 0.14" (3.56mm) Tube 0 mV ~ 100 mV (10V) 4-SIP Module
