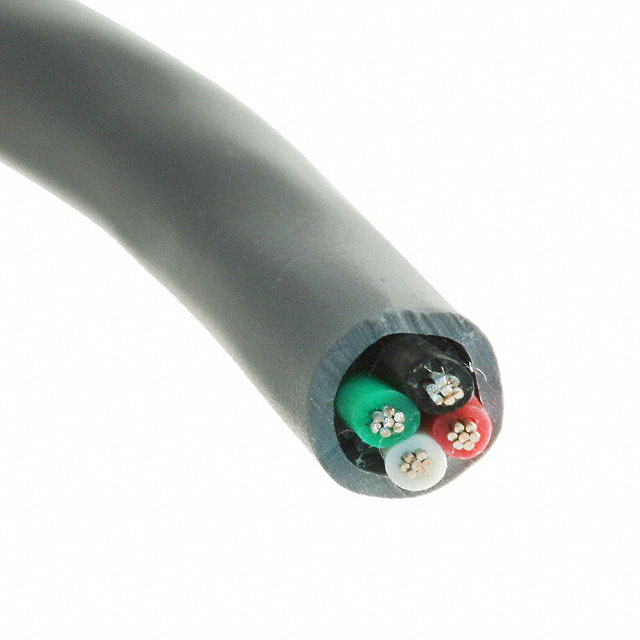

1274 SL001

Active

ALPHA WIRE

CABLE 4COND 14AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 14AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	1274 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [diameter]	0.0147 in
Jacket (Insulation) Diameter [diameter]	0.503 in
Jacket (Insulation) Diameter [diameter]	12.78 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	600 V
Wire Gauge	13.5 AWG

Part	Conductor Strand [diameter]	Conductor Strand [custom]	Usage	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Number of Conductors	Voltage	Length [x]	Length [x]	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Length	Length
ALPHA WIRE 1274 SL002	0.0147 in	19 Strands	Communication Control	13.5 AWG	-20 C	80 C	Poly-Vinyl Chloride (PVC)	1.194 mm	0.047 in	Slate	4	600 V	500 '	152.4 m	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.503 in	12.78 mm	Copper Tinned
ALPHA WIRE 1274 SL001	0.0147 in	19 Strands	Communication Control	13.5 AWG	-20 C	80 C	Poly-Vinyl Chloride (PVC)	1.194 mm	0.047 in	Slate	4	600 V			Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.503 in	12.78 mm	Copper Tinned	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.31

General part information

4 Conductor Multi-Conductor Cable Slate 14 AWG 1000.0' (304.8m)
