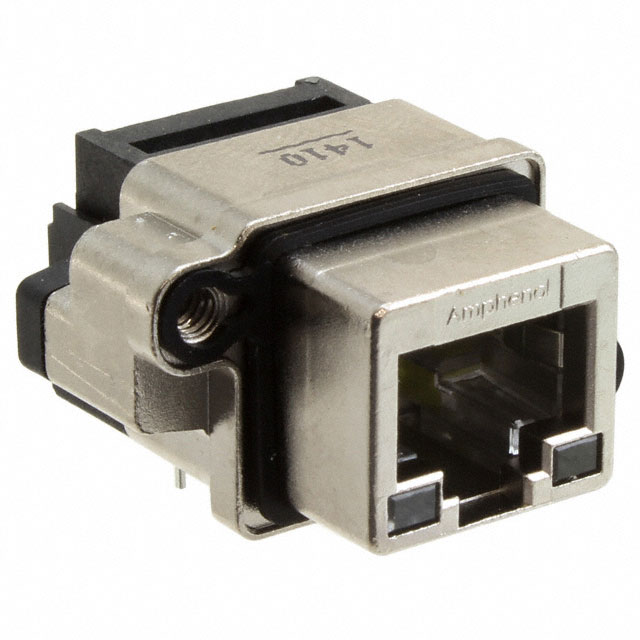

MRJR-5381-01
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMRJ Series Cut Sheet
MRJR-5381-01
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C R/A
Deep-Dive with AI
DocumentsMRJ Series Cut Sheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MRJR-5381-01 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Housing Material | Polycarbonate (PC) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| LED Color | Yellow, Green |
| Mounting Type | Panel Mount, Flange (2 Hole), Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shielding | Unshielded |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.57 | |
| 10 | $ 14.69 | |||
| 25 | $ 14.12 | |||
| 50 | $ 13.55 | |||
| 100 | $ 12.80 | |||
| 250 | $ 11.67 | |||
| 500 | $ 10.92 | |||
Description
General part information
MRJR53 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
