6605814-5

Active

TRP Connector B.V.

CONN JACK 1PORT 1000 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 1000 BASE-T

Technical Specifications

Parameters and characteristics for this part

Specification	6605814-5

Applications	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Height Above Board [z]	14.1 mm
Height Above Board [z]	0.555 in
Housing Material	Polyethylene Terephthalate (PET), Polyester
LED Color	Green, Yellow - Green
Mounting Type	Through Hole
Number of Cores per Jack	12
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Height Above Board [z]	Height Above Board [z]	Number of Rows	Orientation	Applications	Number of Cores per Jack	Shield Material	Housing Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Tab Direction	Contact Finish	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Type	LED Color	Number of Ports
TRP Connector B.V. 6605814-5	14.1 mm	0.555 in	1	90 °	10/100/1000 Base-T AutoMDIX	12	Brass	Polyester Polyethylene Terephthalate (PET)	Through Hole	50 µin	1.27 µm	Phosphor Bronze	Up	Gold	Shielded EMI Finger	70 °C	0 °C	Solder	RJ45	Green Yellow - Green	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

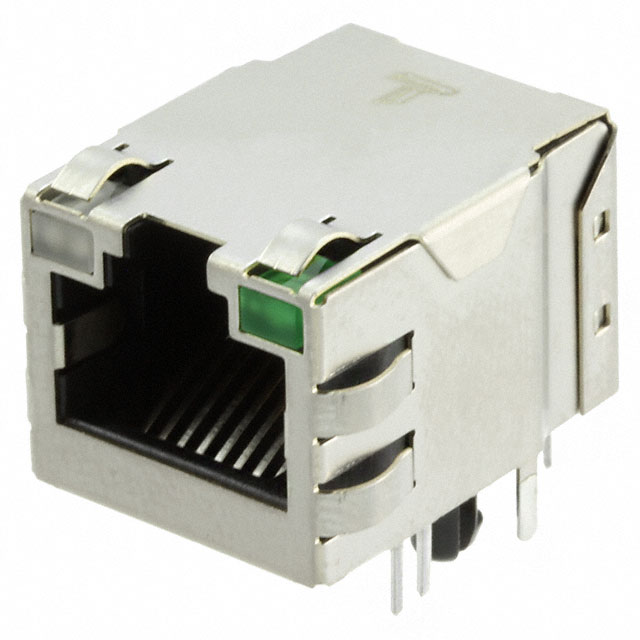

1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
