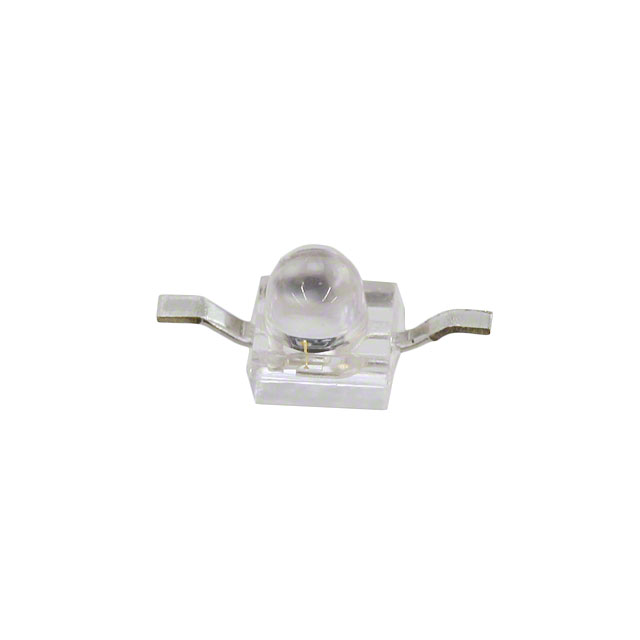

PT91-21C/TR10

Active

Everlight Electronics Co Ltd

SENSOR PHOTO 940NM TOP VIEW 2SMD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

SENSOR PHOTO 940NM TOP VIEW 2SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PT91-21C/TR10

Current - Collector (Ic) (Max) [Max]	20 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Top View
Package / Case	2-SMD, Z-Bend
Power - Max [Max]	75 mW
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Wavelength	Current - Dark (Id) (Max) [Max]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]
Everlight Electronics Co Ltd PT91-21B/TR7	Top View	30 V	2-SMD Gull Wing	-25 °C	85 °C	940 nm	100 nA	Surface Mount	20 mA
Everlight Electronics Co Ltd PT91-21B/TR10	Top View	30 V	2-SMD Z-Bend	-25 °C	85 °C	940 nm	100 nA	Surface Mount	20 mA
Everlight Electronics Co Ltd PT91-21B/TR9	Top View	30 V	2-SMD Yoke Bend	-25 °C	85 °C	940 nm	100 nA	Surface Mount	20 mA
Everlight Electronics Co Ltd PT91-21C/TR10	Top View	30 V	2-SMD Z-Bend	-25 °C	85 °C	940 nm	100 nA	Surface Mount	20 mA	75 mW
Everlight Electronics Co Ltd PT91-21C	Top View	30 V	Axial	-25 °C	85 °C	940 nm	100 nA	Through Hole	20 mA	75 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 940nm Top View 2-SMD, Z-Bend
