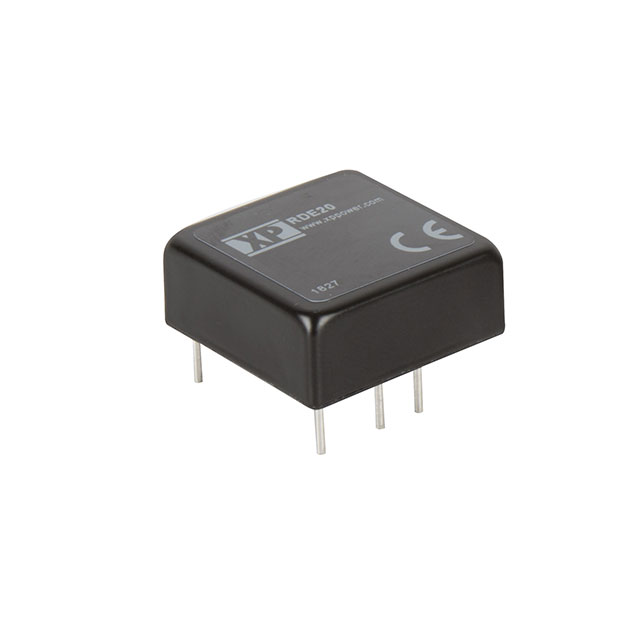

RDE2024S12 - RDE20-Series

RDE2024S12

Active
XP POWER

ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, 5:1, 20 W, 1 OUTPUT, 12 V, 1.67 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetCertificate of Conformity EN+1
RDE2024S12 - RDE20-Series

RDE2024S12

Active
XP POWER

ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, 5:1, 20 W, 1 OUTPUT, 12 V, 1.67 A

Deep-Dive with AI

DocumentsDatasheetCertificate of Conformity EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationRDE2024S12
ApplicationsRailway, ITE (Commercial)
Control FeaturesActive High, Enable
Current - Output (Max) [Max]1.67 A
Efficiency89 %
FeaturesOVP, UVLO, OCP, Remote On/Off, SCP
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature [Max]100 °C
Operating Temperature [Min]-40 °C
Package / Case6-DIP Module
Power (Watts)20 W
Size / Dimension [x]25.4 mm
Size / Dimension [x]1 in
Size / Dimension [y]25.4 mm
Size / Dimension [y]25.4 mm
Size / Dimension [z]0.43 "
Size / Dimension [z]10.9 mm
Standard Number62368-1
TypeIsolated Module
Voltage - Input (Max) [Max]70 V
Voltage - Input (Min) [Min]13 V
Voltage - Isolation3000 V
Voltage - Output 112 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 50.60
5$ 49.08
10$ 47.56
25$ 45.54
100$ 42.50
NewarkEach 1$ 50.60
5$ 49.08
10$ 47.56
25$ 45.54
100$ 42.50

Description

General part information

RDE2024 Series

Isolated Module DC DC Converter 1 Output 12V 1.67A 13V - 70V Input
