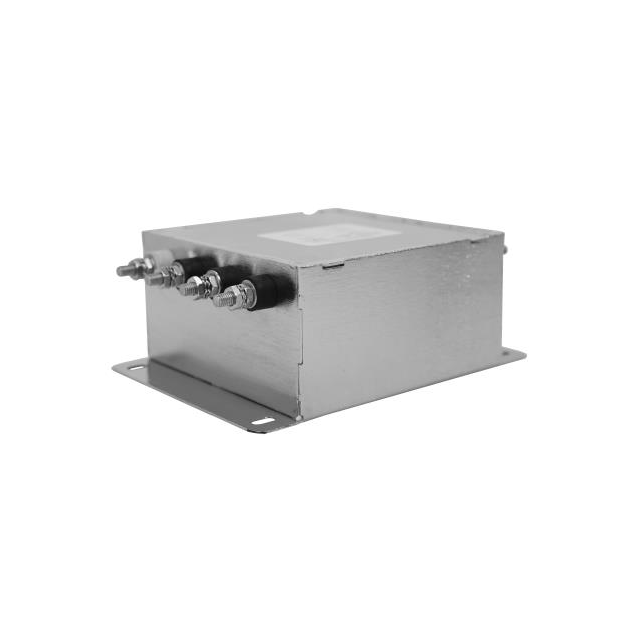

RPM8000-80-S

Active

Astrodyne TDI

LINE FILTER 480VAC 80A CHASSIS

Search across all available documentation for this part.

Active

Astrodyne TDI

LINE FILTER 480VAC 80A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	RPM8000-80-S

Configuration	Two Stage
Current	80 A
Filter Type	Three Phase (Wye)
Frequency - Operating [Max]	400 Hz, 60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Termination Style	Threaded Post (M6)
Voltage - Rated AC	480 V
Voltage - Rated AC (Phase to Ground/Neutral)	1.8 kV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC	Filter Type	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC (Phase to Ground/Neutral)	Mounting Type	Current	Configuration
Astrodyne TDI RPM8000-5-S	100 °C	-40 °C	480 V	Three Phase (Wye)	Threaded Post (M5)	60 Hz 400 Hz	50 Hz	1.8 kV	Chassis Mount	5 A	Two Stage
Astrodyne TDI RPM8000-125-S	100 °C	-40 °C	480 V	Three Phase (Wye)	Threaded Post (M10)	60 Hz 400 Hz	50 Hz	1.8 kV	Chassis Mount	125 A	Two Stage
Astrodyne TDI RPM8000-80-S	100 °C	-40 °C	480 V	Three Phase (Wye)	Threaded Post (M6)	60 Hz 400 Hz	50 Hz	1.8 kV	Chassis Mount	80 A	Two Stage
Astrodyne TDI RPM8000-20-S	100 °C	-40 °C	480 V	Three Phase (Wye)	Threaded Post (M5)	60 Hz 400 Hz	50 Hz	1.8 kV	Chassis Mount	20 A	Two Stage
Astrodyne TDI RPM8000-30-S	100 °C	-40 °C	480 V	Three Phase (Wye)	Threaded Post (M5)	60 Hz 400 Hz	50 Hz	1.8 kV	Chassis Mount	30 A	Two Stage
Astrodyne TDI RPM8000-50-S	100 °C	-40 °C	480 V	Three Phase (Wye)	Threaded Post (M5)	60 Hz 400 Hz	50 Hz	1.8 kV	Chassis Mount	50 A	Two Stage
Astrodyne TDI RPM8000-10-S	100 °C	-40 °C	480 V	Three Phase (Wye)	Threaded Post (M5)	60 Hz 400 Hz	50 Hz	1.8 kV	Chassis Mount	10 A	Two Stage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2261.30

General part information

Three Phase (Wye) EMC/EMI Line Filter 80 A 480V 50/60Hz, 50/400Hz Two Stage Threaded Post (M6)
