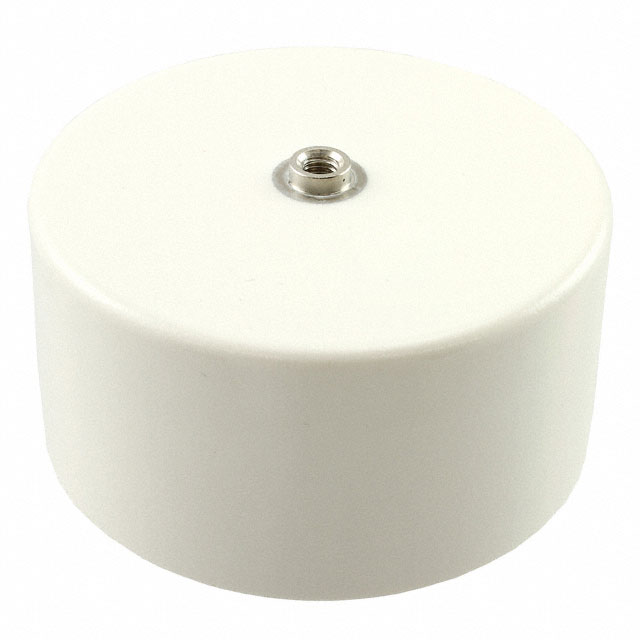

DHS4E4G132MRXB

Obsolete

Murata Power Solutions Inc.

CAP CER 1300PF 40KV N4700 DISK

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAP CER 1300PF 40KV N4700 DISK

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Temperature Coefficient	Features	Mounting Type	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Size / Dimension	Size / Dimension [custom]
Murata Power Solutions Inc. DHS4E4G441MHXB	20 %	N4700	High Voltage	Requires Holder	30 mm	37.5 mm	1.181 inches	1.476 in	440 pF	20 °C	85 °C	General Purpose	Disk Metal Fitting - Threaded
Murata Power Solutions Inc. DHS4E4G132MRXB	20 %	N4700	High Voltage	Requires Holder			2.047 in		1300 pF	20 °C	85 °C	General Purpose	Disk Metal Fitting - Threaded	37.5 mm 52 mm	1.476 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1300 pF ±20% 40000V (40kV) Ceramic Capacitor N4700 Disk, Metal Fitting - Threaded
