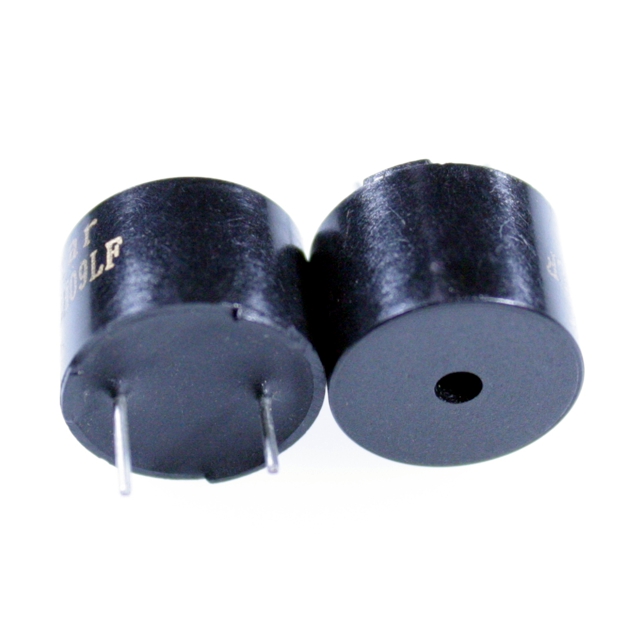

BMT1212H09
ActiveBeStar Technologies, Inc.
BUZZER MAGNETIC 12V 12MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BMT1212H09
ActiveBeStar Technologies, Inc.
BUZZER MAGNETIC 12V 12MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BMT1212H09 |
|---|---|
| Current - Supply | 40 mA |
| Frequency | 2.4 kHz |
| Height - Seated (Max) [Max] [z] | 0.571 in |
| Height - Seated (Max) [Max] [z] | 14.5 mm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Size / Dimension [diameter] | 12 mm |
| Size / Dimension [diameter] | 0.472 in |
| Sound Pressure Level (SPL) | 85 dB |
| Technology | Magnetic |
| Termination | PC Pins |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 16 V |
| Voltage Range [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 2.38 | |
| 25 | $ 1.59 | |||
| 50 | $ 1.19 | |||
| 100 | $ 0.79 | |||
Description
General part information
BMT1212 Series
Buzzers Magnetic 12 V 40mA 2.4kHz 85dB @ 12V, 10cm Through Hole PC Pins
