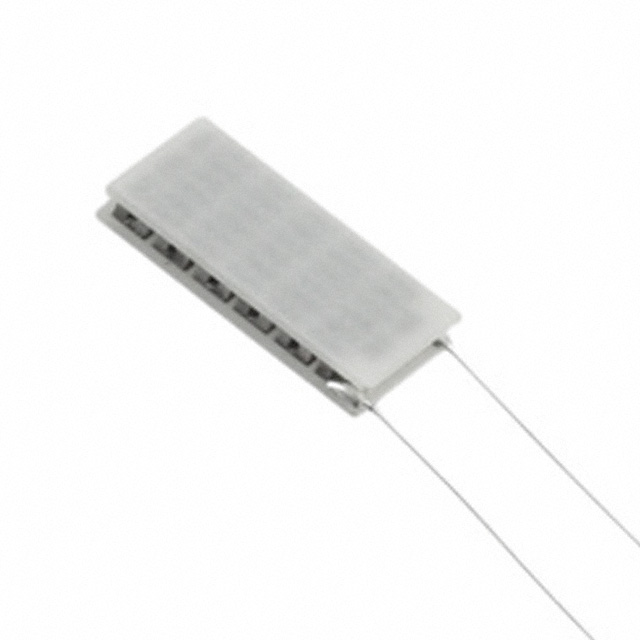

430701-501
Laird Thermal Systems, Inc.
PELTIR ET19,35,F1N,0612,11,W2.25
Deep-Dive with AI
Search across all available documentation for this part.
430701-501
Laird Thermal Systems, Inc.
PELTIR ET19,35,F1N,0612,11,W2.25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430701-501 |
|---|---|
| Current - Max [Max] | 1.9 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 1.65 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 4.5 W |
| Resistance | 1.92 Ohms |
| Size / Dimension [x] | 12.2 mm |
| Size / Dimension [y] | 6 mm |
| Voltage - Max [Max] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 69.17 | |
| 50 | $ 59.46 | |||
| 100 | $ 57.84 | |||
Description
General part information
430701 Series
Peltier Module 4.5W @ 25°C 1.9 A 80°C
Documents
Technical documentation and resources
