0353630860

Active

Molex

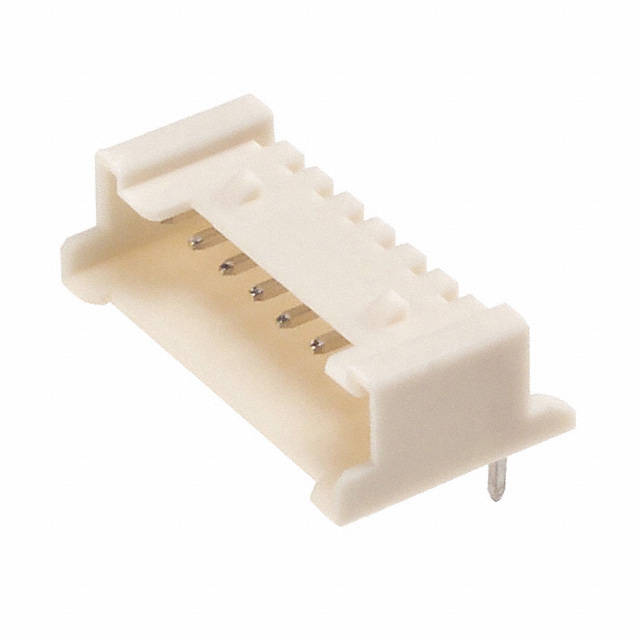

CONN HEADER R/A 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0353630860

Active

Molex

CONN HEADER R/A 8POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0353630860

Applications	Automotive, General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	3.7 mm
Contact Length - Mating	0.145 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder

035363 Series

2.00mm Pitch Sherlock Wire-to-Board Header, Right-Angle, with Positive Lock, 2 Circuits, White, Glass-filled

Part	Contact Length - Post	Contact Length - Post [x]	Insulation Height [custom]	Insulation Height [custom]	Fastening Type	Number of Positions Loaded	Contact Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Rows	Contact Shape	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Style	Applications	Insulation Material	Material Flammability Rating	Connector Type	Contact Material	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post
Molex 0353630910	3.2 mm	0.126 in	5.51 mm	0.217 in	Locking Ramp	All	Male Pin	3.7 mm	0.145 in	Natural	1	Square	Through Hole Right Angle	0.079 in	2 mm	Shrouded - 4 Wall	78.7 µin	2 µm	Kinked Pin Solder	Tin-Lead	Board to Cable/Wire	Automotive General Purpose	Nylon Polyamide (PA)	UL94 V-0	Header	Brass	9
Molex 0353630252	3.2 mm	0.126 in	5.51 mm	0.217 in	Locking Ramp	All	Male Pin	3.7 mm	0.145 in	Red	1	Square	Through Hole Right Angle	0.079 in	2 mm	Shrouded - 4 Wall	39.4 µin	1 µm	Kinked Pin Solder		Board to Cable/Wire		Glass Filled Nylon Polyamide (PA)	UL94 V-0	Header	Brass	2	1 çm	39.4 çin	Tin
Molex 0353631110	3.2 mm	0.126 in	5.51 mm	0.217 in	Locking Ramp	All	Male Pin	3.7 mm	0.145 in	Natural	1	Square	Through Hole Right Angle	0.079 in	2 mm	Shrouded - 4 Wall	78.7 µin	2 µm	Kinked Pin Solder	Tin-Lead	Board to Cable/Wire	Automotive General Purpose	Nylon Polyamide (PA)	UL94 V-0	Header	Brass	11
Molex 0353631260	3.2 mm	0.126 in	5.51 mm	0.217 in	Locking Ramp	All	Male Pin	3.7 mm	0.145 in	Natural	1	Square	Through Hole Right Angle	0.079 in	2 mm	Shrouded - 4 Wall	78.7 µin	2 µm	Kinked Pin Solder		Board to Cable/Wire	Automotive General Purpose	Nylon Polyamide (PA)	UL94 V-0	Header	Brass	12	2 çm	78.7 çin	Tin
Molex 0353630610	3.2 mm	0.126 in	5.51 mm	0.217 in	Locking Ramp	All	Male Pin	3.7 mm	0.145 in	Natural	1	Square	Through Hole Right Angle	0.079 in	2 mm	Shrouded - 4 Wall	78.7 µin	2 µm	Kinked Pin Solder	Tin-Lead	Board to Cable/Wire	Automotive General Purpose	Nylon Polyamide (PA)	UL94 V-0	Header	Brass	6
Molex 0353630450	3.2 mm	0.126 in	5.51 mm	0.217 in	Locking Ramp	All	Male Pin	3.7 mm	0.145 in	Natural	1	Square	Through Hole Right Angle	0.079 in	2 mm	Shrouded - 4 Wall	78.7 µin	2 µm	Kinked Pin Solder		Board to Cable/Wire	Automotive General Purpose	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Header	Brass	4	2 çm	78.7 çin	Tin
Molex 0353630210	3.2 mm	0.126 in	5.51 mm	0.217 in	Locking Ramp	All	Male Pin	3.7 mm	0.145 in	Natural	1	Square	Through Hole Right Angle	0.079 in	2 mm	Shrouded - 4 Wall	78.7 µin	2 µm	Solder	Tin-Lead	Board to Cable/Wire	Automotive General Purpose	Nylon Polyamide (PA)	UL94 V-0	Header	Brass	2
Molex 0353630352	3.2 mm	0.126 in	5.51 mm	0.217 in	Locking Ramp	All	Male Pin	3.7 mm	0.145 in	Red	1	Square	Through Hole Right Angle	0.079 in	2 mm	Shrouded - 4 Wall	78.7 µin	2 µm	Kinked Pin Solder		Board to Cable/Wire	Automotive General Purpose	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Header	Brass		2 çm	78.7 çin	Tin
Molex 0353631060	3.2 mm	0.126 in	5.51 mm	0.217 in	Locking Ramp	All	Male Pin	3.7 mm	0.145 in	Natural	1	Square	Through Hole Right Angle	0.079 in	2 mm	Shrouded - 4 Wall	78.7 µin	2 µm	Kinked Pin Solder		Board to Cable/Wire	Automotive General Purpose	Nylon Polyamide (PA)	UL94 V-0	Header	Brass	10	2 çm	78.7 çin	Tin
Molex 0353630860	3.2 mm	0.126 in	5.51 mm	0.217 in	Locking Ramp	All	Male Pin	3.7 mm	0.145 in	Natural	1	Square	Through Hole Right Angle	0.079 in	2 mm	Shrouded - 4 Wall	78.7 µin	2 µm	Kinked Pin Solder		Board to Cable/Wire	Automotive General Purpose	Nylon Polyamide (PA)	UL94 V-0	Header	Brass	8	2 çm	78.7 çin	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.65
		10	$ 0.49
		100	$ 0.37
		500	$ 0.32
		1000	$ 0.30
		5000	$ 0.27

Description

General part information

035363 Series

2.00mm Pitch Sherlock Wire-to-Board Header, Right-Angle, with Positive Lock, 2 Circuits, White, Glass-filled

Documents

Technical documentation and resources
