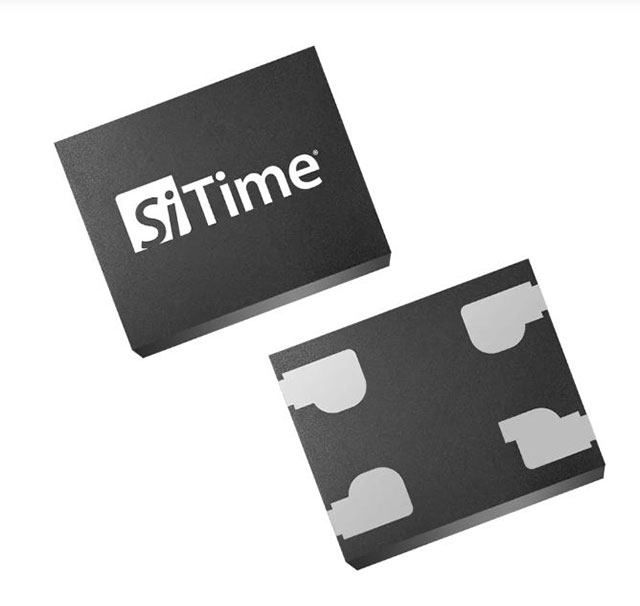

SIT1424BA-21-XXN-27.000000
ActiveSiTime
MEMS OSC 27.0000MHZ LVCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
SIT1424BA-21-XXN-27.000000
ActiveSiTime
MEMS OSC 27.0000MHZ LVCMOS SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIT1424BA-21-XXN-27.000000 |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Max) [Max] | 4.8 mA |
| Frequency | 27 MHz |
| Frequency Stability | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q100 |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 4.68 | |
| 10 | $ 4.45 | |||
| 50 | $ 4.21 | |||
| 100 | $ 3.86 | |||
| 500 | $ 3.69 | |||
| 1000 | $ 3.16 | |||
| 2500 | $ 2.93 | |||
Description
General part information
SIT1424 Series
27 MHz XO (Standard) LVCMOS Oscillator 2.5V ~ 3.3V 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
