2960-6025

Active

Amphenol SV Microwave

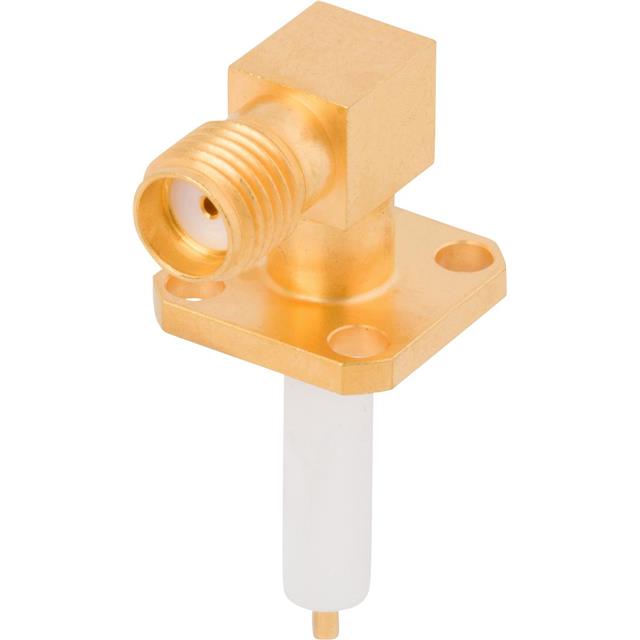

SMA FEMALE FLANGE MOUNT CONNECTOR, 4 HOLE, R/A (CANDLESTICK) /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMA FEMALE FLANGE MOUNT CONNECTOR, 4 HOLE, R/A (CANDLESTICK) /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Technical Specifications

Parameters and characteristics for this part

Specification	2960-6025

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Shield Termination	Solder

Part	Body Finish	Connector Type	Center Contact Material	Housing Color	Contact Termination	Center Contact Plating	Mounting Type	Mounting Feature	Shield Termination	Impedance	Frequency - Max [Max]	Features	Body Material	Connector Style	Dielectric Material	Number of Ports	Mating Cycles
Amphenol SV Microwave 2960-6025	Gold	Female Socket Receptacle	Beryllium Copper	Gold	Solder	Gold	Panel Mount Right Angle	Flange	Solder	50 Ohms	12.4 GHz	Extended Insulation	Stainless Steel	SMA	Polytetrafluoroethylene (PTFE)	1	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount, Right Angle Solder
