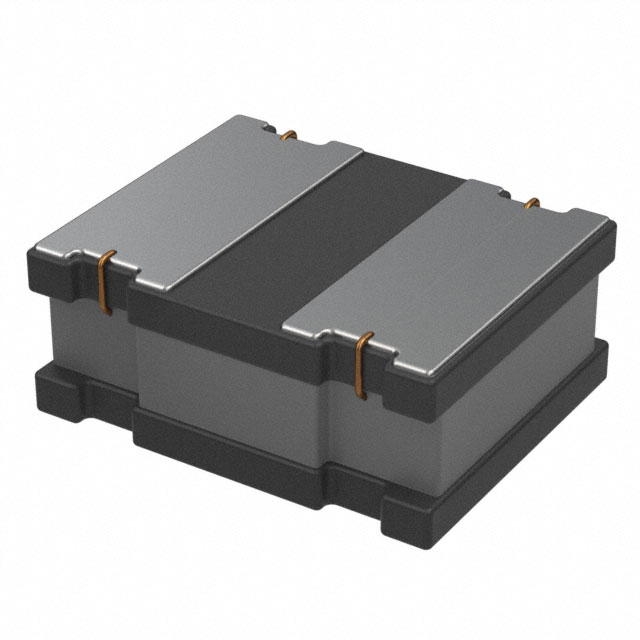

SDEM25201T-220MS

Active

Delta Electronics/Cyntec

FIXED IND 22UH 450MA 1.2OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

SDEM25201T-220MS

Active

Delta Electronics/Cyntec

FIXED IND 22UH 450MA 1.2OHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDEM25201T-220MS

Current - Saturation (Isat)	600 mA
Current Rating (Amps)	450 mA
DC Resistance (DCR) [Max]	1.2 Ohm
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Inductance	22 µH
Inductance Frequency - Test	1 MHz
Material - Core	Metal
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1008
Shielding	Shielded
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	2520
Tolerance	20 %

SDEM25201T Series

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Material - Core	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Inductance	Inductance Frequency - Test	Package / Case	Supplier Device Package	Mounting Type	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR)
Delta Electronics/Cyntec SDEM25201T-R24MS	4.3 A	-55 °C	125 °C	20 %	Metal	6.3 A	0.039 "	1 mm	23 mOhm	240 nH	1 MHz	1008	2520	Surface Mount	Shielded	0.098 "	2 mm	2.5 mm	0.079 in
Delta Electronics/Cyntec SDEM25201T-1R5MS	2.2 A	-55 °C	125 °C	20 %	Metal	2.8 A	0.039 "	1 mm		1.5 µH	1 MHz	1008	2520	Surface Mount	Shielded	0.098 "	2 mm	2.5 mm	0.079 in	100 mOhm
Delta Electronics/Cyntec SDEM25201T-3R3MS	1.53 A	-55 °C	125 °C	20 %	Metal	1.62 A	0.039 "	1 mm	216 mOhm	3.3 µH	1 MHz	1008	2520	Surface Mount	Shielded	0.098 "	2 mm	2.5 mm	0.079 in
Delta Electronics/Cyntec SDEM25201T-R33MS	4.2 A	-55 °C	125 °C	20 %	Metal	5.85 A	0.039 "	1 mm	29 mOhm	330 nH	1 MHz	1008	2520	Surface Mount	Shielded	0.098 "	2 mm	2.5 mm	0.079 in
Delta Electronics/Cyntec SDEM25201T-220MS	450 mA	-55 °C	125 °C	20 %	Metal	600 mA	0.039 "	1 mm	1.2 Ohm	22 µH	1 MHz	1008	2520	Surface Mount	Shielded	0.098 "	2 mm	2.5 mm	0.079 in
Delta Electronics/Cyntec SDEM25201T-1R0MS	3 A	-55 °C	125 °C	20 %	Metal	3.6 A	0.039 "	1 mm		1 µH	1 MHz	1008	2520	Surface Mount	Shielded	0.098 "	2 mm	2.5 mm	0.079 in	62 mOhm
Delta Electronics/Cyntec SDEM25201T-2R2MS	1.97 A	-55 °C	125 °C	20 %	Metal	2.3 A	0.039 "	1 mm		2.2 µH	1 MHz	1008	2520	Surface Mount	Shielded	0.098 "	2 mm	2.5 mm	0.079 in	115 mOhm
Delta Electronics/Cyntec SDEM25201T-R47MS	3.6 A	-55 °C	125 °C	20 %	Metal	5 A	0.039 "	1 mm	35 mOhm	470 nH	1 MHz	1008	2520	Surface Mount	Shielded	0.098 "	2 mm	2.5 mm	0.079 in
