AT402S

Active

NKK Switches

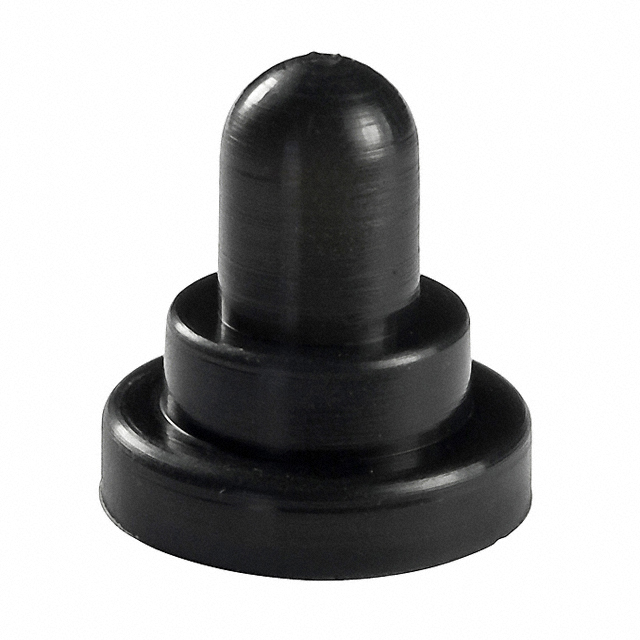

ASSEMBLY HARDWARE, NKK M SERIES TOGGLE SWITCHES, SPLASHPROOF BOOT

Search across all available documentation for this part.

Active

NKK Switches

ASSEMBLY HARDWARE, NKK M SERIES TOGGLE SWITCHES, SPLASHPROOF BOOT

Technical Specifications

Parameters and characteristics for this part

Specification	AT402S

Color	Black
For Use With/Related Products	M Series
Ingress Protection	Splash Proof
Material	Silicone Rubber
Mounting Feature	Front of Panel
Size / Dimension [z]	0.724 in
Size / Dimension [z]	18.4 mm
Thread Size	M12x1
Type	Full Boot, Toggle

Part	Mounting Feature	Ingress Protection	Size / Dimension [z]	Size / Dimension [z]	Material	Color	Thread Size	For Use With/Related Products	Type
NKK Switches AT402S	Front of Panel	Splash Proof	0.724 in	18.4 mm	Silicone Rubber	Black	M12x1	M Series	Full Boot Toggle
NKK Switches AT402F	Front of Panel	Splash Proof	0.917 "	23.3 mm	Silicone Rubber	Green	M12x1	M P and S Series	Full Boot Toggle
NKK Switches AT402H	Front of Panel	Splash Proof	0.917 "	23.3 mm	Ethylene Propylene Rubber (EPR)	Gray	M12x1	M P and S Series	Full Boot Toggle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ASSEMBLY HARDWARE, NKK M SERIES TOGGLE SWITCHES, SPLASHPROOF BOOT
