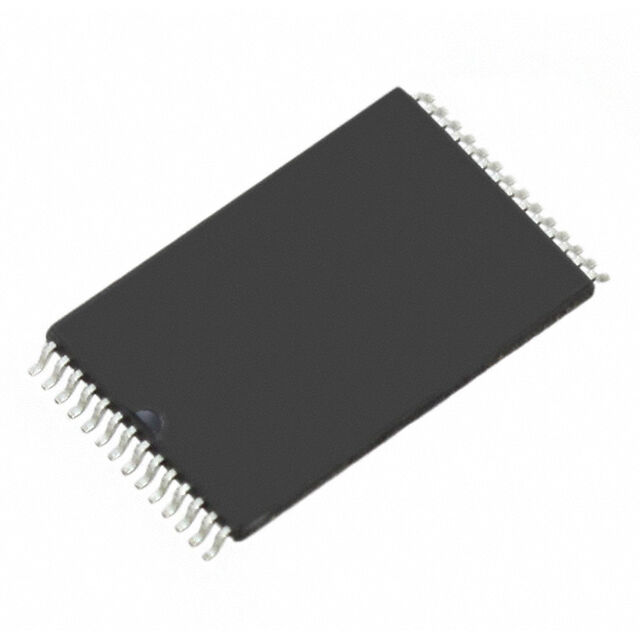

71256SA20PZGI8

Obsolete

Renesas Electronics Corporation

5.0V 32K X 8 ASYNCHRONOUS STATIC RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 71256SA Datasheet

71256SA20PZGI8

Obsolete

Renesas Electronics Corporation

5.0V 32K X 8 ASYNCHRONOUS STATIC RAM

Deep-Dive with AI

DocumentsDatasheet 71256SA Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	71256SA20PZGI8

Access Time	20 ns
Memory Format	SRAM
Memory Interface	Parallel
Memory Organization	32K x 8
Memory Size	32 KB
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	28-TSSOP
Package / Case [x]	0.465 "
Package / Case [y]	11.8 mm
Supplier Device Package	28-TSOP
Technology	SRAM - Asynchronous
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V
Write Cycle Time - Word, Page	20 ns

71256SA Series

5.0V 32K x 8 Asynchronous Static Ram

Part	Memory Organization	Memory Size	Package / Case	Package / Case	Package / Case	Write Cycle Time - Word, Page	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Access Time	Memory Type	Technology	Memory Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Package / Case [y]	Package / Case [x]
Renesas Electronics Corporation 71256SA15YGI	32K x 8	32 KB	7.62 mm	0.3 in	28-BSOJ	15 ns	SRAM	85 °C	-40 °C	28-SOJ	15 ns	Volatile	SRAM - Asynchronous	Parallel	4.5 V	5.5 V	Surface Mount
Renesas Electronics Corporation 71256SA12YG8	32K x 8	32 KB	7.62 mm	0.3 in	28-BSOJ	12 ns	SRAM	70 °C	0 °C	28-SOJ	12 ns	Volatile	SRAM - Asynchronous	Parallel	4.5 V	5.5 V	Surface Mount
Renesas Electronics Corporation 71256SA20YGI8	32K x 8	32 KB	7.62 mm	0.3 in	28-BSOJ	20 ns	SRAM	85 °C	-40 °C	28-SOJ	20 ns	Volatile	SRAM - Asynchronous	Parallel	4.5 V	5.5 V	Surface Mount
Renesas Electronics Corporation 71256SA12PZG8	32K x 8	32 KB			28-TSSOP	12 ns	SRAM	70 °C	0 °C	28-TSOP	12 ns	Volatile	SRAM - Asynchronous	Parallel	4.5 V	5.5 V	Surface Mount	11.8 mm	0.465 "
Renesas Electronics Corporation 71256SA20PZGI8	32K x 8	32 KB			28-TSSOP	20 ns	SRAM	85 °C	-40 °C	28-TSOP	20 ns	Volatile	SRAM - Asynchronous	Parallel	4.5 V	5.5 V	Surface Mount	11.8 mm	0.465 "
Renesas Electronics Corporation 71256SA15PZG8	32K x 8	32 KB			28-TSSOP	15 ns	SRAM	70 °C	0 °C	28-TSOP	15 ns	Volatile	SRAM - Asynchronous	Parallel	4.5 V	5.5 V	Surface Mount	11.8 mm	0.465 "
Renesas Electronics Corporation 71256SA15PZGI8	32K x 8	32 KB			28-TSSOP	15 ns	SRAM	85 °C	-40 °C	28-TSOP	15 ns	Volatile	SRAM - Asynchronous	Parallel	4.5 V	5.5 V	Surface Mount	11.8 mm	0.465 "
Renesas Electronics Corporation 71256SA25PZGI8	32K x 8	32 KB			28-TSSOP	25 ns	SRAM	85 °C	-40 °C	28-TSOP	25 ns	Volatile	SRAM - Asynchronous	Parallel	4.5 V	5.5 V	Surface Mount	11.8 mm	0.465 "
Renesas Electronics Corporation 71256SA20YGI	32K x 8	32 KB	7.62 mm	0.3 in	28-BSOJ	20 ns	SRAM	85 °C	-40 °C	28-SOJ	20 ns	Volatile	SRAM - Asynchronous	Parallel	4.5 V	5.5 V	Surface Mount
Renesas Electronics Corporation 71256SA20PZG	32K x 8	32 KB			28-TSSOP	20 ns	SRAM	70 °C	0 °C	28-TSOP	20 ns	Volatile	SRAM - Asynchronous	Parallel	4.5 V	5.5 V	Surface Mount	11.8 mm	0.465 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

71256SA Series

The 71256SA 5V CMOS SRAM is organized as 32K x 8. All bidirectional inputs and outputs of the 71256SA are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.
