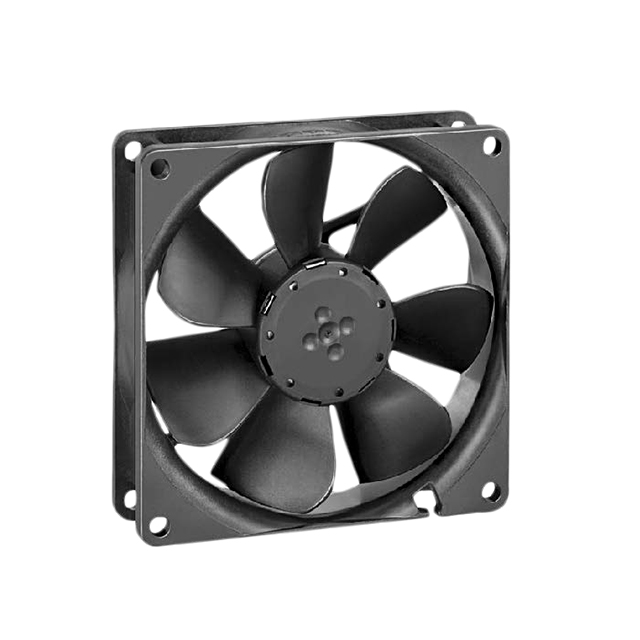

3412NGLE
Activeebm-papst Inc.
FAN AXIAL 92X25MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
3412NGLE
Activeebm-papst Inc.
FAN AXIAL 92X25MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3412NGLE |
|---|---|
| Air Flow | 1.01 m³/min |
| Air Flow | 35.9 CFM |
| Approval Agency | UL, VDE, CSA |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 23 dB(A) |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 1.1 W |
| RPM | 1950 RPM |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 15 V |
| Voltage Range [Min] | 8 VDC |
| Weight | 0.222 lb |
| Weight | 100.7 g |
| Width [y] | 25 mm |
3412N Series
| Part | Voltage Range [Max] | Voltage Range [Min] | Noise | Voltage - Rated | Material - Blade | Bearing Type | RPM | Width [y] | Approval Agency | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Air Flow | Lifetime @ Temp. | Weight | Weight | Termination | Material - Frame | Power (Watts) | Operating Temperature [Max] | Static Pressure | Static Pressure | Current Rating (Amps) | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ebm-papst Inc. | 15 V | 8 VDC | 36 dB | 12 VDC | Fiberglass Reinforced Nylon Polyamide (PA) | Sintec | 3000 RPM | 25.4 mm | CSA UL VDE | Tubeaxial | -20 °C | 70 °C | -20 C | 70 °C | 55.3 CFM | 1.55 m³/min | 70000 Hrs | 99.79 g | 0.22 lb | 2 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | ||||||
ebm-papst Inc. | 15 V | 8 VDC | 23 dB(A) | 12 VDC | Fiberglass Reinforced Nylon Polyamide (PA) | Sintec | 1950 RPM | 25 mm | CSA UL VDE | Tubeaxial | -20 °C | -20 C | 80 C | 35.9 CFM | 1.01 m³/min | 80000 Hrs | 100.7 g | 0.222 lb | 2 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 1.1 W | 80 °C | |||||
ebm-papst Inc. | 15 V | 8 VDC | 35 dB | 12 VDC | Fiberglass Reinforced Nylon Polyamide (PA) | Ball | 3000 RPM | 25.4 mm | CCC CE CSA EAC UL VDE | Tubeaxial | -20 °C | 70 °C | -20 C | 70 °C | 55.3 CFM | 1.55 m³/min | 3 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 47.1 Pa | 0.189 in H2O | 0.208 A | Varies Based on Temperature | |||||
ebm-papst Inc. | 12.6 VDC | 8 VDC | 32 dB | 12 VDC | Fiberglass Reinforced Nylon Polyamide (PA) | Sleeve | 2700 RPM | 25.4 mm | CSA UL VDE | Tubeaxial | -20 °C | -20 C | 65 °C | 49.4 CFM | 1.38 m³/min | 4 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 65 °C | 0.205 A | Varies Based on Temperature |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.34 | |
| 10 | $ 23.14 | |||
| 25 | $ 22.26 | |||
| 50 | $ 20.80 | |||
| 100 | $ 19.18 | |||
| 250 | $ 18.89 | |||
| 500 | $ 18.75 | |||
Description
General part information
3412N Series
Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Sintec 35.9 CFM (1.01m³/min) 2 Wire Leads
