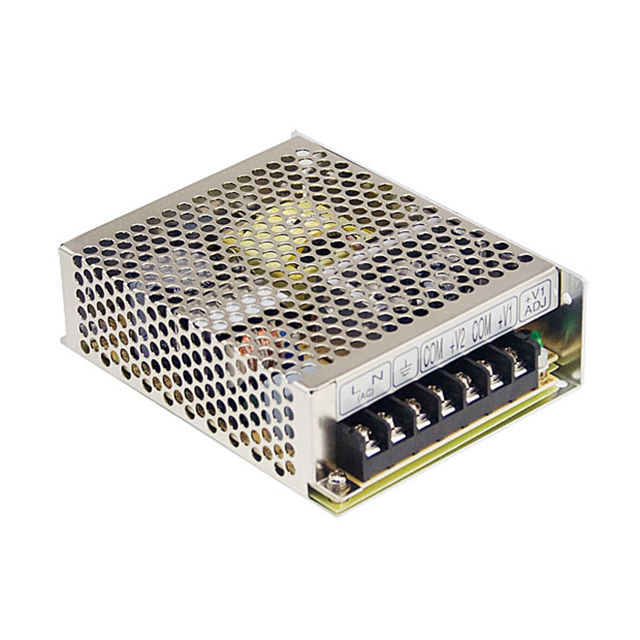

RS-75-15
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 15V 75W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RS-75-15
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 15V 75W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RS-75-15 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 5 A |
| Efficiency | 86 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 75 W |
| Size / Dimension [x] | 5.08 in |
| Size / Dimension [x] | 129 mm |
| Size / Dimension [y] | 3.82 in |
| Size / Dimension [y] | 97 mm |
| Size / Dimension [z] | 38 mm |
| Size / Dimension [z] | 1.5 " |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 373 VDC |
| Voltage - Input [Min] | 88 VAC, 125 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 22.29 | |
| 5 | $ 21.00 | |||
| 10 | $ 20.46 | |||
| 25 | $ 19.78 | |||
Description
General part information
RS-75 Series
Enclosed AC DC Converters 1 Output 15V 88 ~ 264 VAC, 125 ~ 373 VDC Input
