0026603039

Active

Molex

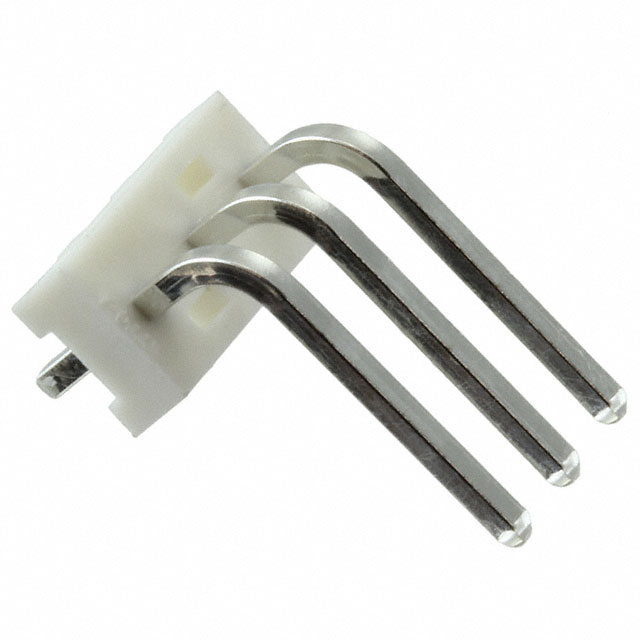

CONN HEADER R/A 3POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0026603039

Active

Molex

CONN HEADER R/A 3POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0026603039

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Length - Mating	5.87 mm
Contact Length - Mating	0.231 in
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

002660 Series

...

Part	Contact Material	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Shrouding	Number of Rows	Contact Type	Style	Insulation Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Connector Type	Insulation Height	Insulation Height	Termination	Contact Length - Post	Contact Length - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Applications	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Number of Positions
Molex 0026603039	Brass	All	Through Hole Right Angle	60 µin	1.52 µm	UL94 V-0	Unshrouded	1	Male Pin	Board to Board Cable	Polyester Glass Filled	Push-Pull	60 Áin	1.52 Ám	Tin	Header	0.13 in	3.3 mm	Solder	4.45 mm	0.175 in	Natural	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	5.87 mm	0.231 in	Square
Molex 0026603020		All	Through Hole Right Angle	60 µin	1.52 µm	UL94 V-0	Unshrouded	1	Male Pin	Board to Board Cable	Polyester Glass Filled	Push-Pull	60 Áin	1.52 Ám	Tin	Header	0.13 in	3.3 mm	Solder			Natural	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	14.86 mm	0.585 in	Square	3.56 mm	0.14 in	2
Molex 0026603099	Brass	All	Through Hole Right Angle	60 µin	1.52 µm	UL94 V-0	Unshrouded	1	Male Pin	Board to Board Cable	Polyester Glass Filled	Push-Pull	60 Áin	1.52 Ám	Tin	Header	0.13 in	3.3 mm	Solder	4.45 mm	0.175 in	Natural	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	5.87 mm	0.231 in	Square			9
Molex 0026603118		All	Through Hole Right Angle	60 µin	1.52 µm	UL94 V-0	Unshrouded	1	Male Pin	Board to Board Cable	Polyester Glass Filled	Push-Pull	60 Áin	1.52 Ám	Tin	Header	0.13 in	3.3 mm	Solder	3.6 mm	0.142 in	Natural	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications			Square			11	0.234 in	5.94 mm
Molex 0026604052		All	Through Hole			UL94 V-0	Shrouded - 1 Wall	1	Male Pin	Board to Board Cable	Polyester Glass Filled	Friction Lock			Tin	Header	0.446 in	11.33 mm	Solder			Natural	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	11.43 mm	0.45 in	Square	3.56 mm	0.14 in				0.72 "	18.29 mm
Molex 0026603090		All	Through Hole Right Angle	60 µin	1.52 µm	UL94 V-0	Unshrouded	1	Male Pin	Board to Board Cable	Polyester Glass Filled	Push-Pull	60 Áin	1.52 Ám	Tin	Header	0.13 in	3.3 mm	Solder			Natural	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	14.86 mm	0.585 in	Square	3.56 mm	0.14 in	9
Molex 0026604093		All	Through Hole	60 µin	1.52 µm	UL94 V-0	Shrouded - 1 Wall	1	Male Pin	Board to Board Cable	Polyester Glass Filled	Friction Lock	60 Áin	1.52 Ám	Tin	Header	0.446 in	11.33 mm	Solder	4.32 mm	0.17 in	Natural	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	11.43 mm	0.45 in	Square			9			0.75 in	19.05 mm
Molex 0026602031		All	Through Hole	60 µin	1.52 µm	UL94 V-0	Unshrouded	1	Male Pin	Board to Board Cable	Polyester Glass Filled	Push-Pull	60 Áin	1.52 Ám	Tin	Header	0.13 in	3.3 mm	Solder	3.6 mm	0.142 in	Natural	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	16.97 mm	0.668 "	Square						0.94 "	23.88 mm
Molex 0026603119	Brass	All	Through Hole Right Angle	60 µin	1.52 µm	UL94 V-0	Unshrouded	1	Male Pin	Board to Board Cable	Polyester Glass Filled	Push-Pull	60 Áin	1.52 Ám	Tin	Header	0.13 in	3.3 mm	Solder	4.45 mm	0.175 in	Natural	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	5.87 mm	0.231 in	Square			11
Molex 0026603160		All	Through Hole Right Angle	60 µin	1.52 µm	UL94 V-0	Unshrouded	1	Male Pin	Board to Board Cable	Polyester Glass Filled	Push-Pull	60 Áin	1.52 Ám	Tin	Header	0.13 in	3.3 mm	Solder			Natural	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	14.86 mm	0.585 in	Square	3.56 mm	0.14 in						16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8550	$ 0.12

Description

General part information

002660 Series

Connector Header Through Hole, Right Angle 3 position 0.156" (3.96mm)
