SMDA24C-8.TBT
ActiveSemtech Corporation
TRANSIENT SUPPRESSOR DIODE ARRAY,BIDIRECTIONAL,24V V(RWM),SO ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
SMDA24C-8.TBT
ActiveSemtech Corporation
TRANSIENT SUPPRESSOR DIODE ARRAY,BIDIRECTIONAL,24V V(RWM),SO ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMDA24C-8.TBT |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels | 8 |
| Capacitance @ Frequency | 50 pF |
| Current - Peak Pulse (10/1000µs) | 5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |

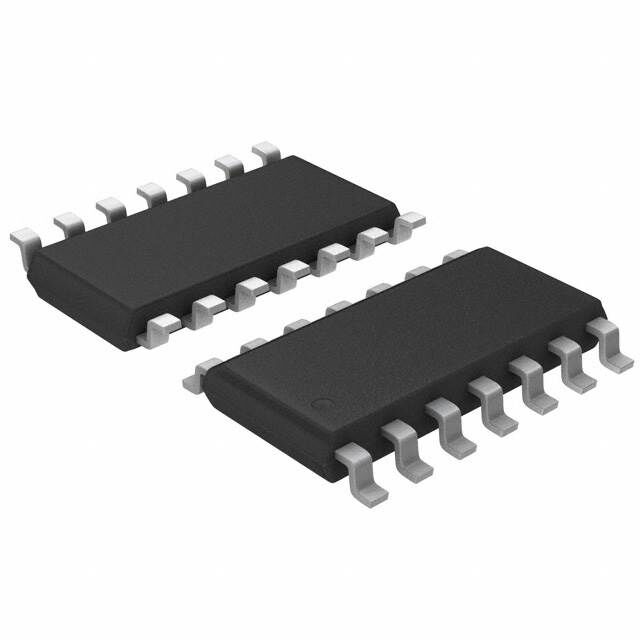

| Package / Case | 14-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Power - Peak Pulse | 300 W |
| Power Line Protection | False |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 26.7 V |
| Voltage - Clamping (Max) @ Ipp | 43 V |
| Voltage - Reverse Standoff (Typ) | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.13 | |
| 10 | $ 2.63 | |||
| 100 | $ 2.13 | |||
| Digi-Reel® | 1 | $ 3.13 | ||
| 10 | $ 2.63 | |||
| 100 | $ 2.13 | |||
| Tape & Reel (TR) | 500 | $ 1.89 | ||
| 1000 | $ 1.62 | |||
| 2500 | $ 1.52 | |||
| 5000 | $ 1.46 | |||
Description
General part information
SMDA24 Series
43V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 14-SOIC
